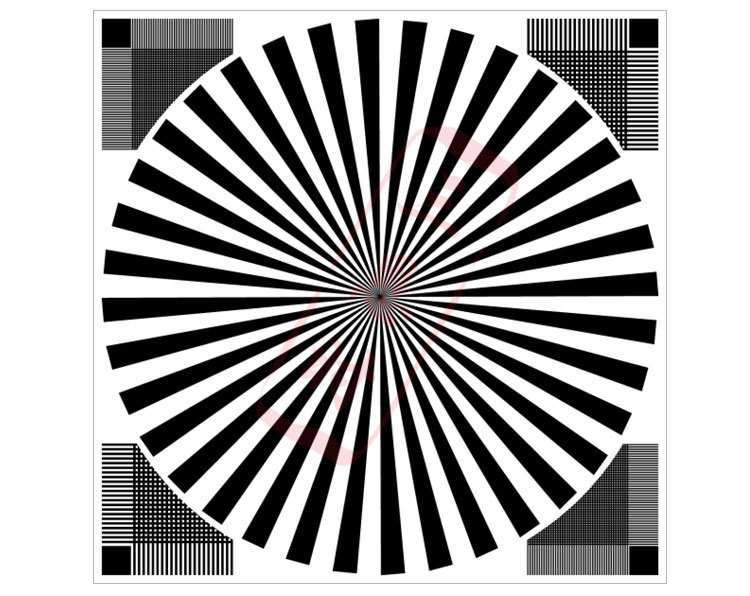

这张测试图是由36扇区西门子星组成的。这个西门子星的直径是192.8mm，其中不确定的核心直径为2mm。
图像边缘分布着垂直和水平的网格。网格在右上角和左下角的分辨率是0.625Lp/mm，在左上角和右下角的分辨率为1.25Lp/mm。
测试图被布置在具有超级敏感等级影印相纸上。照相纸软垫具有自黏合膜。另外测试图是固定厚2毫米的卡片上。这种测试网格为摄像机、镜头、缩微胶片和扩音设备的光学系统插图质量检测提供依据。

The test chart consists of a Siemens star with 36 sectors. The diameter of the Siemenss tar is 192.8mm, the unresolved core has a diameter of 2mm.

Vertical and horizontal grids are arranged at the edges of the test chart. The grids have a resolution of 0.625Lp/mm at the top right and down left egde and at the top left and down right of 1.25Lp/mm.

The test chart is arranged on reprographic photographic paper with ultra arduous gradation. The photographic paper is upholstered with a self-adhesive film, which is adequate for a per hand treatment. Alternatively the test chart is fixed on a card with 2mm gauge.

The test grid provides an appraisal of the illustration quality of optical systems like cameras, lenses, microfilm systems and amplification equipment.
