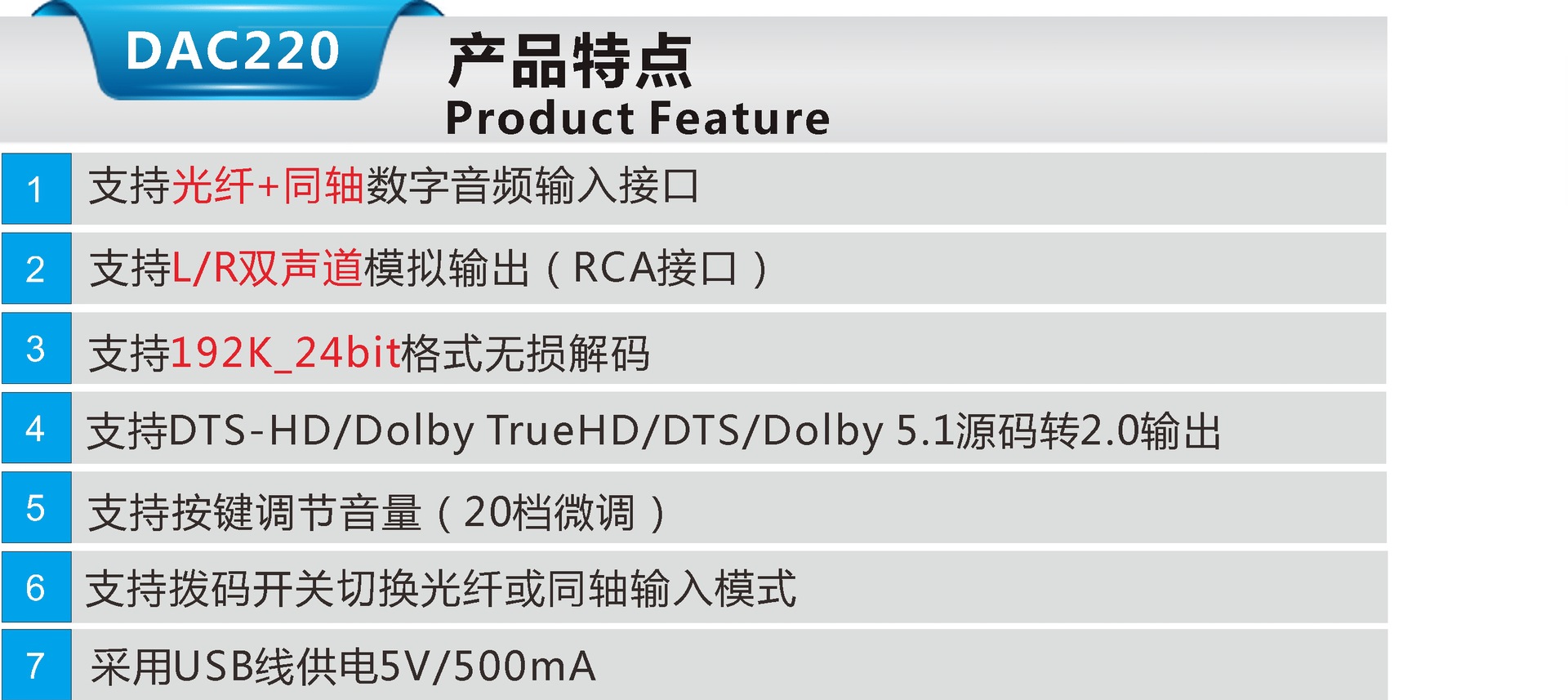

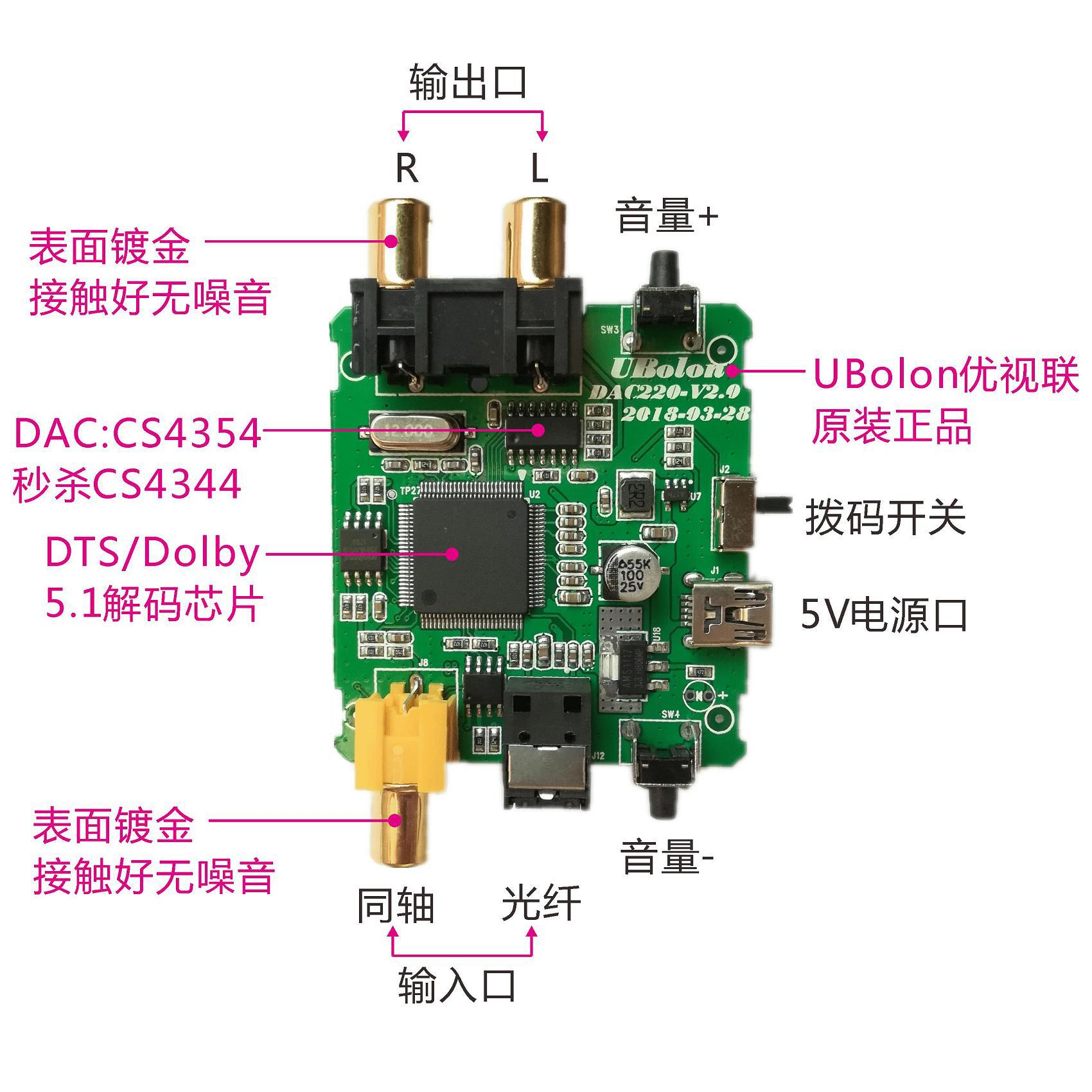

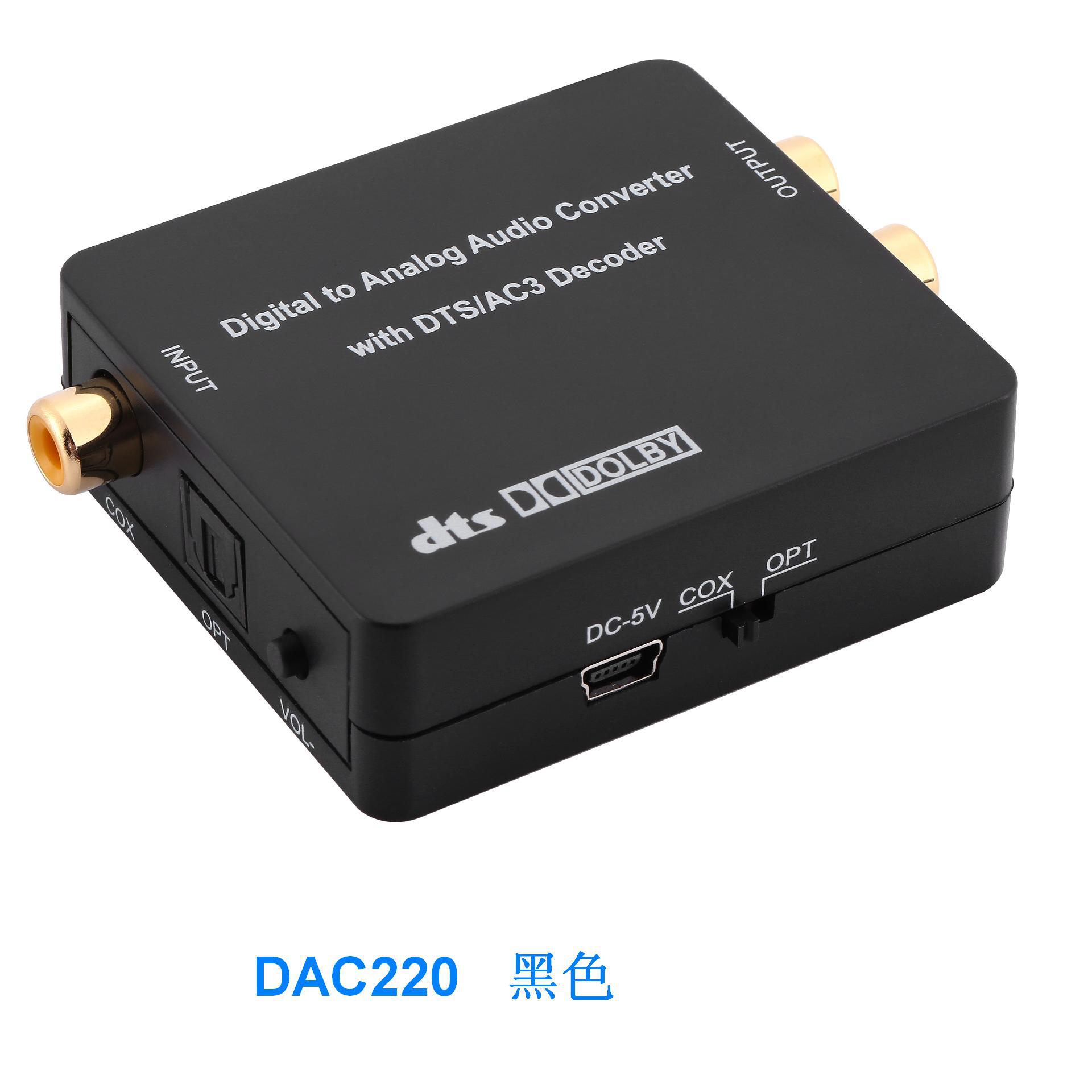

FEATURES

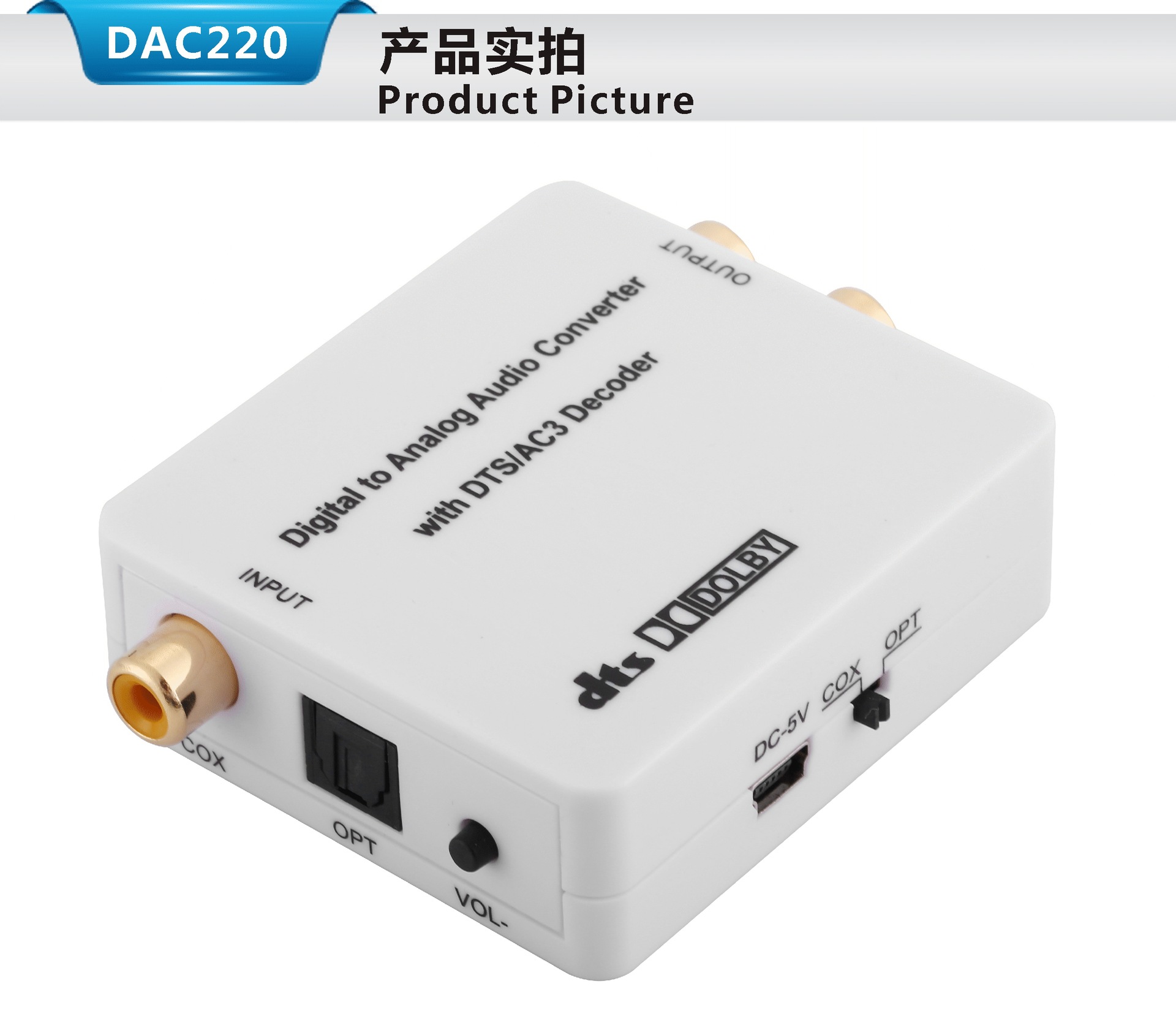

1:  Support one digitalOptical input,one digital Coaxial input, You can switch between via the dial switch.

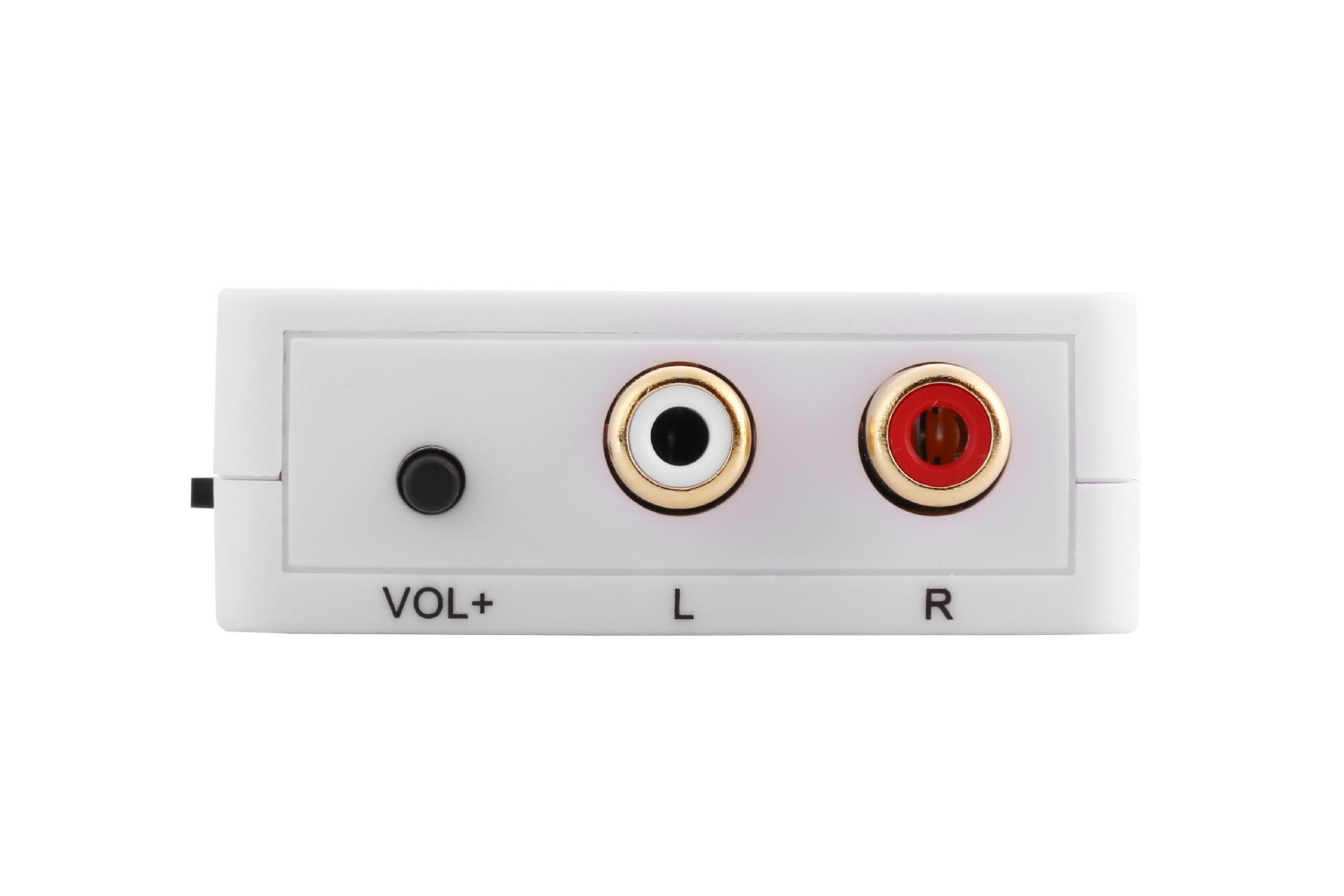

2:  Support L/R 2.0ch analog audio output.

3: Support Volume control via button.

4:  Support DTS/Dolby 5.1ch downmix to 2.0ch output,support PCM 2.0ch.

5: Support DC5V/500mA power via Mini USB port.

SPECIFICATIONS

DSP sample frequency range………………………………………………….. 24b~192 KHz

DSP Bit rate range…………………………………………………………………….16~24 Bit

Analog output level(1kHz@0dB)......................................................................  ≥1.5V RMS

SNR @ 0dB(CCIR/ARM)…………………………………………………………………≥90dB

Frequency response……………………………………………………………….20Hz~20KHz

Max working current ……………………………………………….……….…….….…..200mA

Power adapter format Input …….….…….... . .... .... .... .... .... .... .... ..... ..…. DC-5V/500mA

Operating Temperature range ……..……………………………………………. -10 to +60℃

Storage Temperature range………………………………………………………. -20 to +60℃

Operating Humidity range …………….….……….……….10 to 90%RH (No Condensation)

Storage Humidity range………………………….……………5 to 95%RH (No Condensation)

Product/Package Dimension (L x W x H) ……….…………….. 72x55x20/155x90x24 (mm)

Product/Pachage Weight …….……….……………………………………………. 40g/100g
