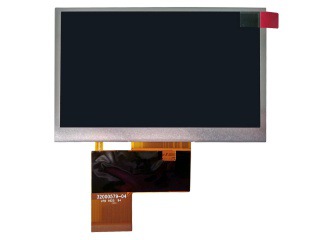

| AT043TN25 V.2 4.3" 480(RGB)×272 [WQVGA] 128PPI , a-Si TFT-LCD | |||
| WLED Backlight，Matte 2 in 1 FPC | |||
| Panel Model | AT043TN25 V.2 | Panel Brand | Innolux |
| Size (inch ) | 4.3inch | Panel Type | LCM , a-Si TFT-LCD |
| Resolution | 480(RGB)×272 [WQVGA] 128PPI | Pixel Format | RGB Vertical Stripe |
| Module Outsize(mm) | 105.5(H)×67.2(V) ×3.1(D) mm | Display Mode | TN, Normally White, Transmissive |
| LCD Active area(mm) | 95.04(H)×53.856(V) mm | Response Time | 10/15 (Typ.)(Tr/Td) |
| Support Color | 16.7M 50% NTSC | Light Source | WLED [8S1P] , 20K hours , W/O Driver |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | TouchScreen | Without |
| Brightness | 500 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) | Used for | Portable Navigaiton, Automotive Display |
| Frame Rate | 60Hz | Enviroment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| LCM Interface Type | Parallel RGB (1 ch, 8-bit) 40 pins FPC | FPC connector | Pitch 0.5mm |
| Packaging & Delivery | |||
| Packaging Details | 80pcs/Box | ||
| Port | ShenZhen / HongKong | ||
| Lead Time : | 1-3 working days after payment | ||
| Warranty | 12 Months | ||
| Please contact the seller before you release the order, thanks! | |||
