First, 【Product Introduction】

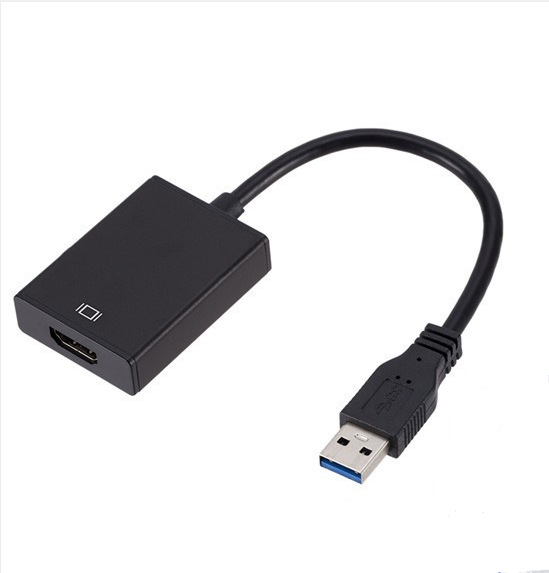

This USB3.0 to HDMI HD converter, allows you to connect the desktop and laptop USB interface to high-definition display device.

So you can watch full HD video or slideshows on the big screen with HDMI input ports such as HDTVs, projectors, slideshows, and more to hear even more rocking music.

Output resolution up to 1080p (this is the resolution of your computer's output signal).

Second, 【Performance parameters】

Types of
Project
Description
Product parameters
name
USB3.0 TO HDMI
USB input
Support USB2.0 / USB3.0
HDMI resolution
Up to 1080P / 60HZ
The maximum transmission rate
5.0Gbps
Output DDC number
5Volts P-P (TTL)
USB3.0 line length
150mm, using standard USB3.0 cable
Maximum operating current
300MA
working environment
0 ℃ to +70 ℃
range of working temperature
-15 ~ 55 ℃
power supply
No external power supply, USB3.0 power supply
drive
Configure the driver CD

Size (L * W * H)
38mm * 15.mm * 60.2mm

weight
About 41g



Third, 【Product Features】

3.1 supports desktop or laptop USB2.0 / USB3.0 input

3.2 support video output: HDMI signal, support for HDMI 1.3b

3.3 in line with USB3.0 specification

3.4 Support USB3.0 backward compatible

3.5 support functions: 1 main display, 2 extended display, 3 mirror

3.6 HDMI output resolution: Support 480P / 576P / 720P / 1080P

3.7 Support computer operating system: Win7 (32 / 64bit) / Win8 (32 / 64bit)、



3.8 supports multi-screen function (PC system, maximum support 6 screen, Mac Apple system supports up to 4 screen), simultaneous output audio and video to HDTV, projectors, slide projector and other high-definition equipment display, easy to install.

Features:

• 100% Brand new and high quality
• Supports a desktop or laptop  computer USB3.0 input
• Support video output: HDMI signals,  support HDMI 1.3b
• Conform to USB3.0 specifications
• Support USB3.0 backward  compatibility
• Supported display functions:
      1. Mirror
      2. Primary
      3. Extended
      4. Rotate
• HDMI output resolution: support 480  P / 576 P / 720 P / 1080 P
• Support the computer operating  system:
      - Windows XP / Vista / Windows 7 (32/64 bit) / windows 8  (32/64 bit), NOT support  Windows 8.1
• Support multiple screen  (Windows system support up to 6 screens,.
• Synchronous output audio and video  to the HDTV, projector, slide projector HD devices and  very easy to operate.

Specification:

• Name: USB3.0 TO HDMI

• USB input: USB3.0 (1920 x 1080)

• Backward Compatible with USB2.0 (800 x 600)

• HDMI Resolution: UP to 1080P/60HZ

• Highest speed: 5.0Gbps

• Output DDC No.: 5Volts P-P(TTL)

• Cable length: 150mm, standard USB3.0  cable

• Operating current: 300mA

• Working Temperature: 0℃ to +70℃

• Operating temperature range: -15 ～55℃

• Powered by USB3.0, low power  consumption

• Size: 60.2 x 38 x 15mm

• Color: Silver

• Weight: About 41g

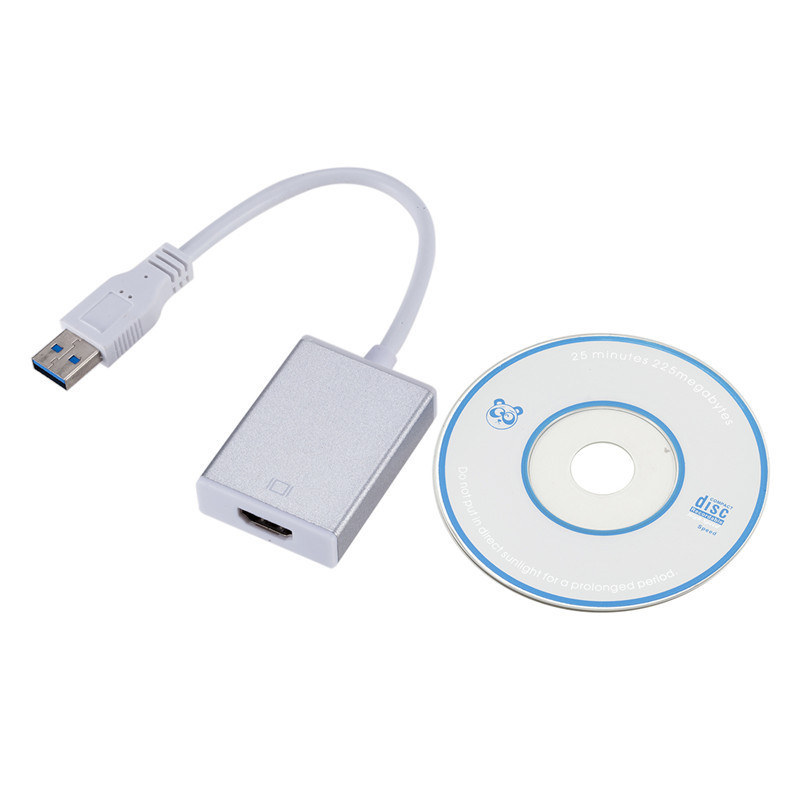

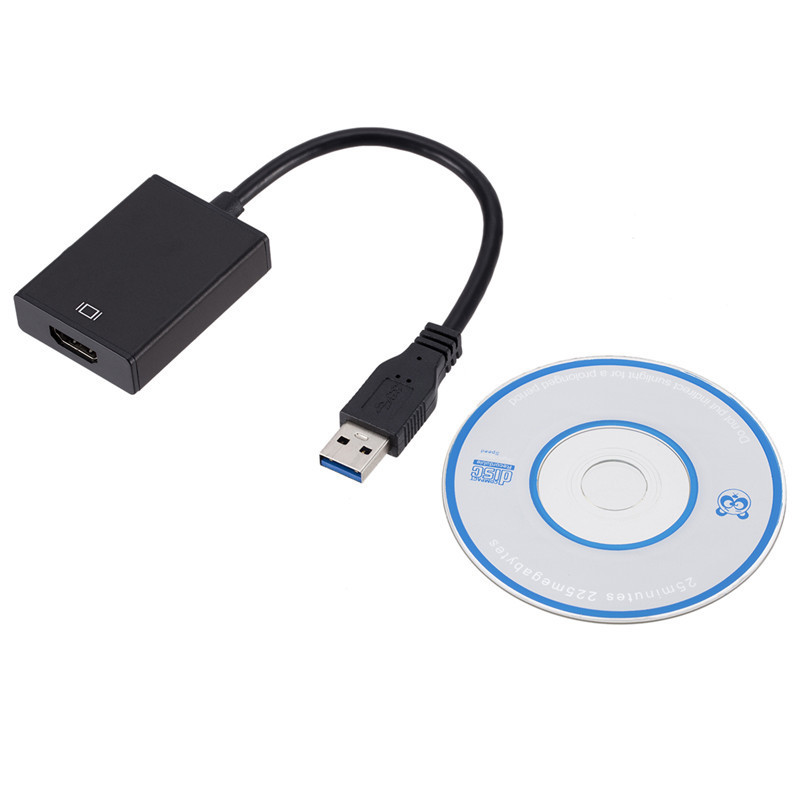

Package include:

• 1 x USB 3.0 TO HDMI Adapter Cable Up to 1080P

• 1 x CD Driver with User Guide
