大功率风扇PWM集线调速器

产品尺寸：42*29*20mm

净重：12g

供电电压：DC12V

供电接口：6PIN(2*3)接口

最大电流：17A

风扇座数量：8个

功能：通过此集线调速器可最多给8个风扇供电，旋转电位器可同时调整8个PWM风扇的转速。

（注：风扇座支持插3PIN和4PIN风扇，如风扇不支持PWM调速功能，则调速功能无效，连接风扇的总电流不要超过最大电流值17A，以免造成调速器损坏）。

安装方法：集线调速器底部粘胶垫，可粘接在机箱内固定。

____________________________________________________________________________________________________________

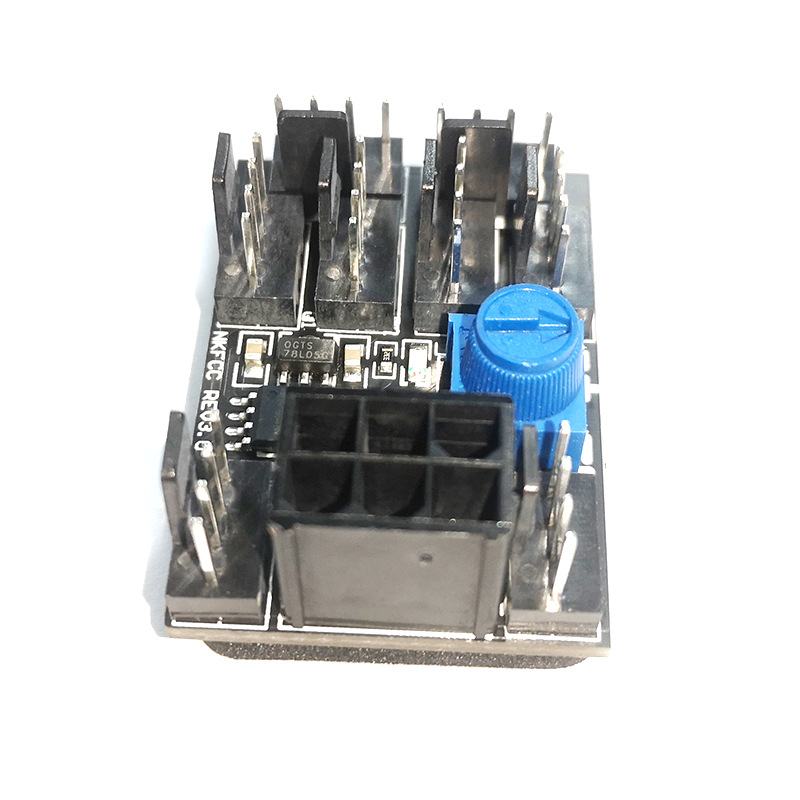

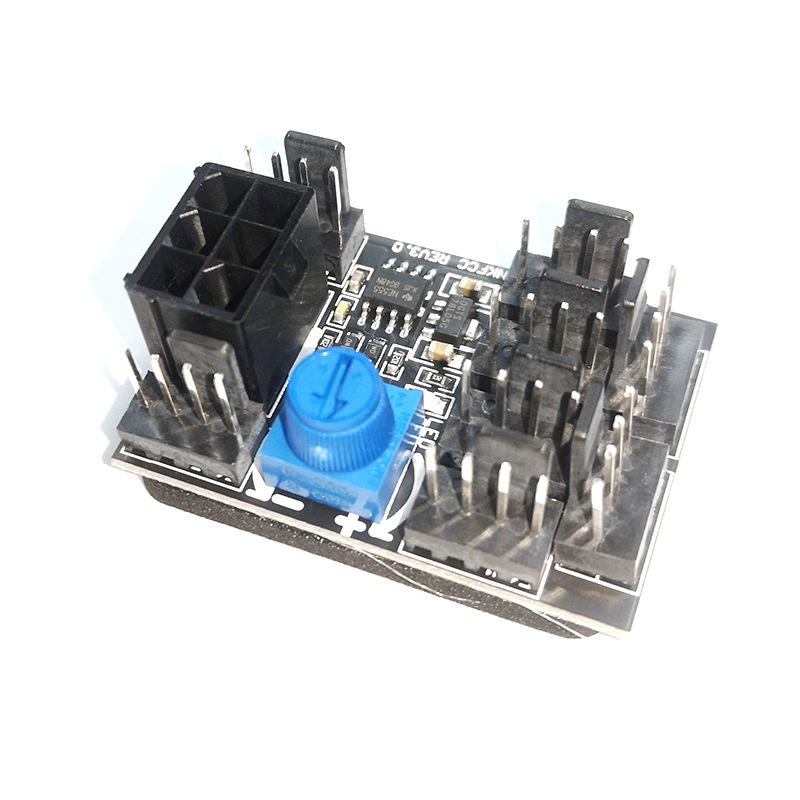

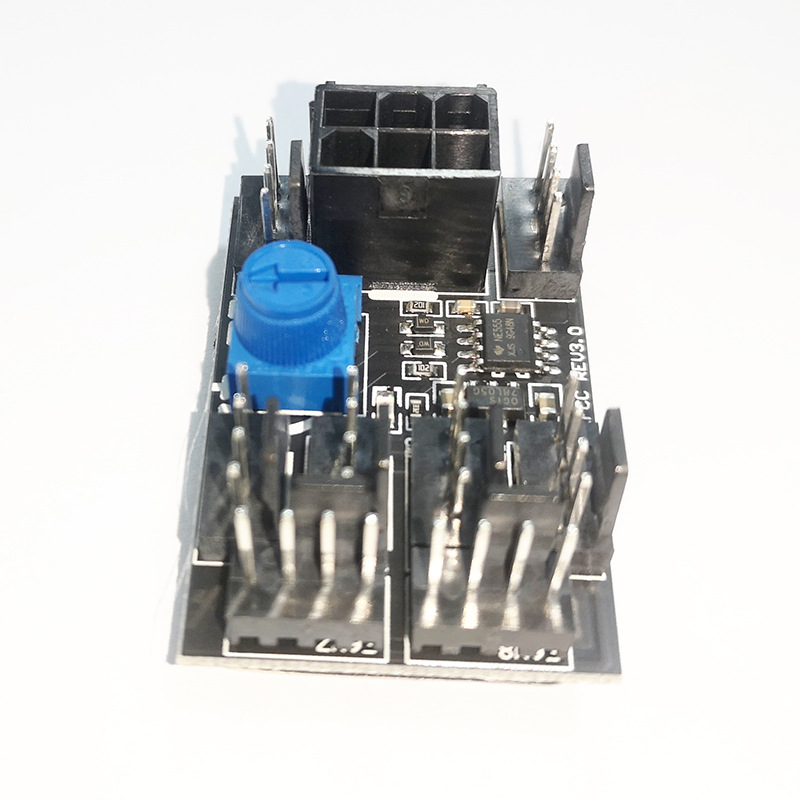

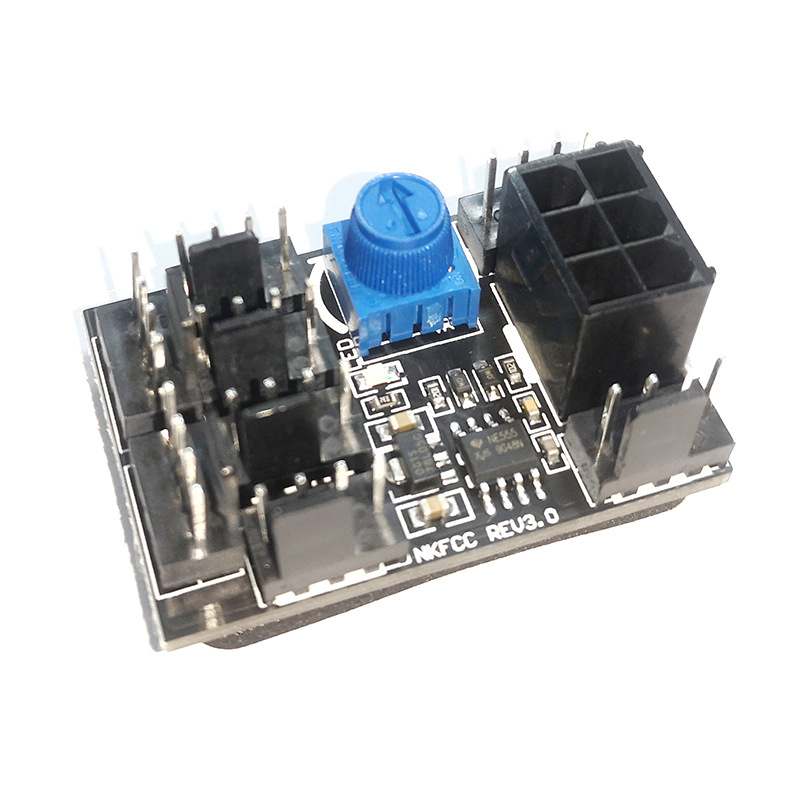

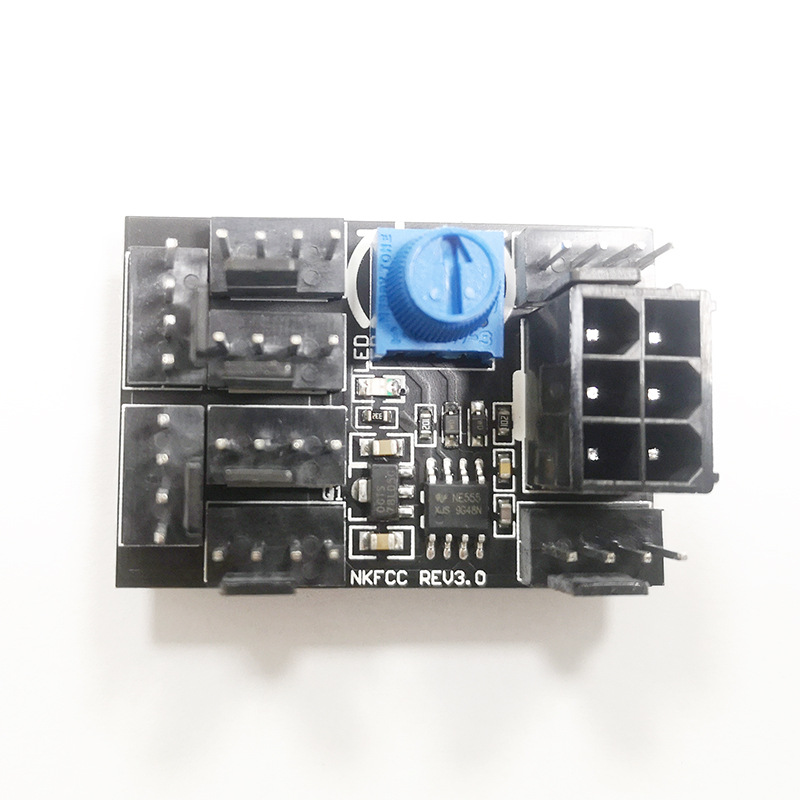

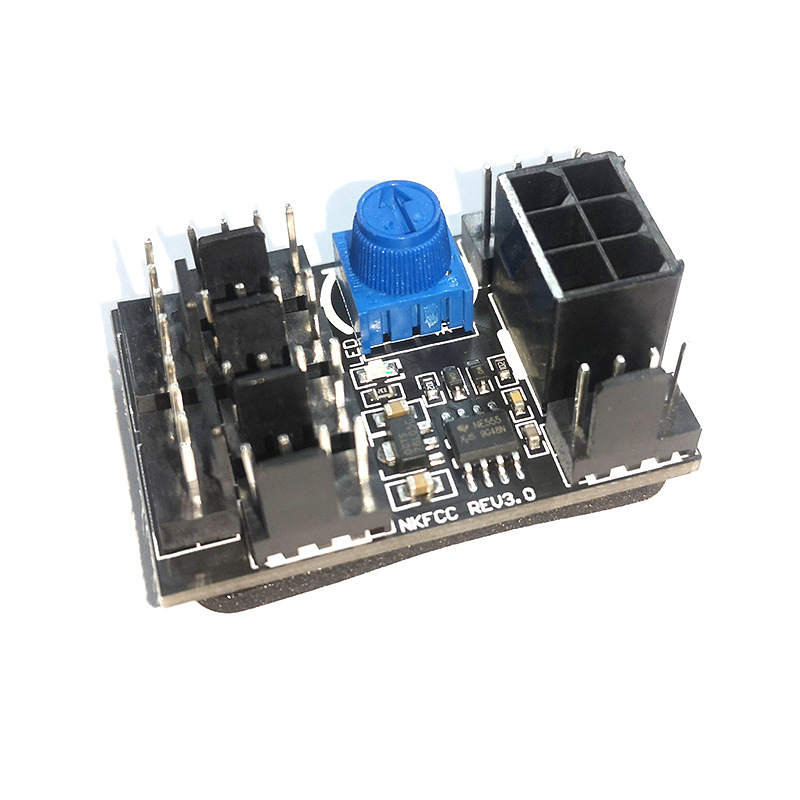

High power fan PWMHUB speed controller

Product size: 42 *29 *20mm

Weight:12g

Supply voltage:DC12V.

Power supply interface:6pin (2 * 3) interface.

Max current:17A

Number of fan seats：8PCS

Function:through this hub, the governor can supply power to up to 8 fans, and the rotating potentiometer can adjust the speed of 8 PWM fans at the same time.

(Note:the fan base supports 3pin and 4Pin fans，If the fan does not support PWM speed regulation function, the speed regulation function is invalid. The total current connected to the fan shall not exceed the maximum current value of 17a to avoid damage to the governor)

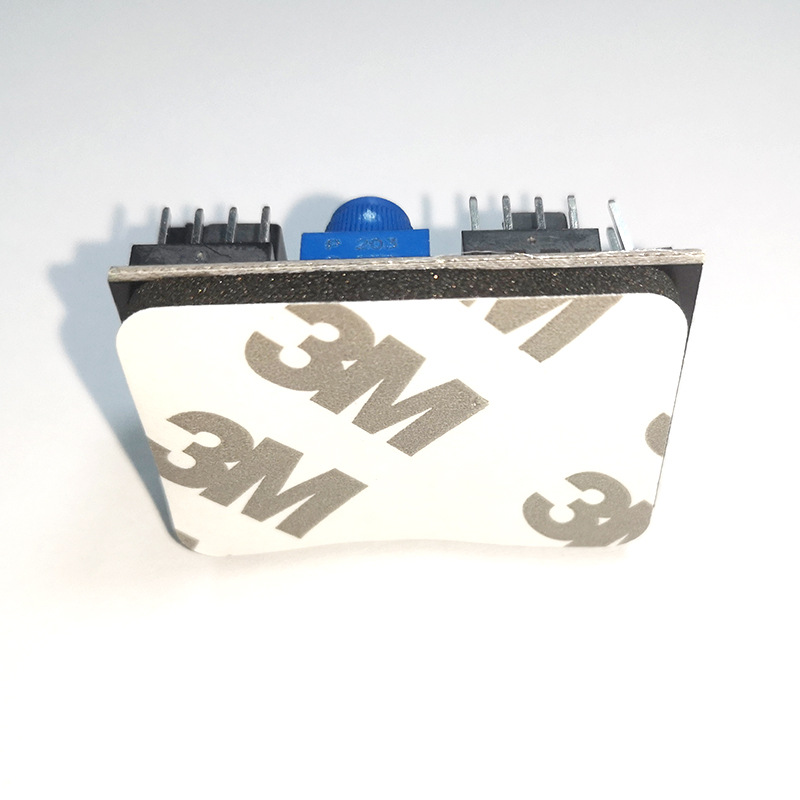

Installation method:the adhesive pad at the bottom of the marshalling governor can be bonded in the chassis for fixation.
