中文版详情

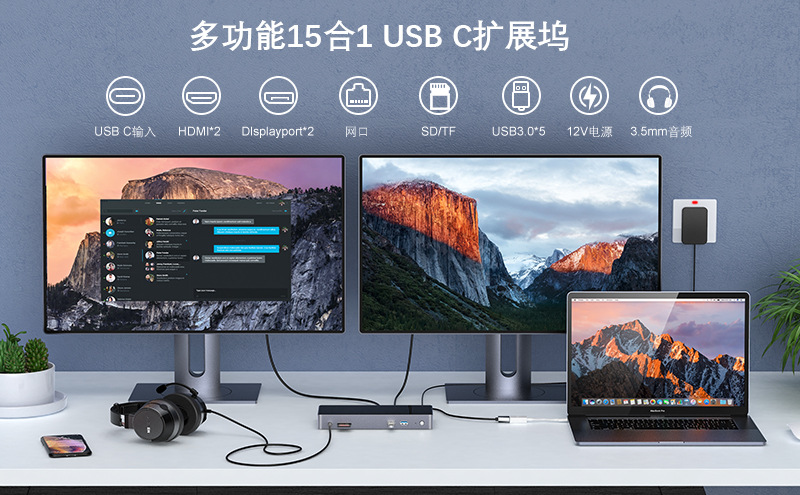

15合1扩展坞多功能USB3.0集线器HDMI/DP双显4K60Hz网口耳机麦克风

QGeeM 15-IN-1 USB 3.0集线器扩展底座适用于Macbook Pro Air 13 2020小米笔记本电脑Chromebook笔记本电脑Surface Pro 7平板电脑5K/双4K 60Hz显示电源充电器USB多端口RJ45 Lan USB C型集线器分配器6 USB 3.0 2 HDMI 2 DP RJ45千兆以太网SD/TF读卡器音频底座OTG适配器PC电脑配件

1.产品介绍：

1） 感谢您为笔记本电脑购买QGeeM双显示多功能扩展坞。

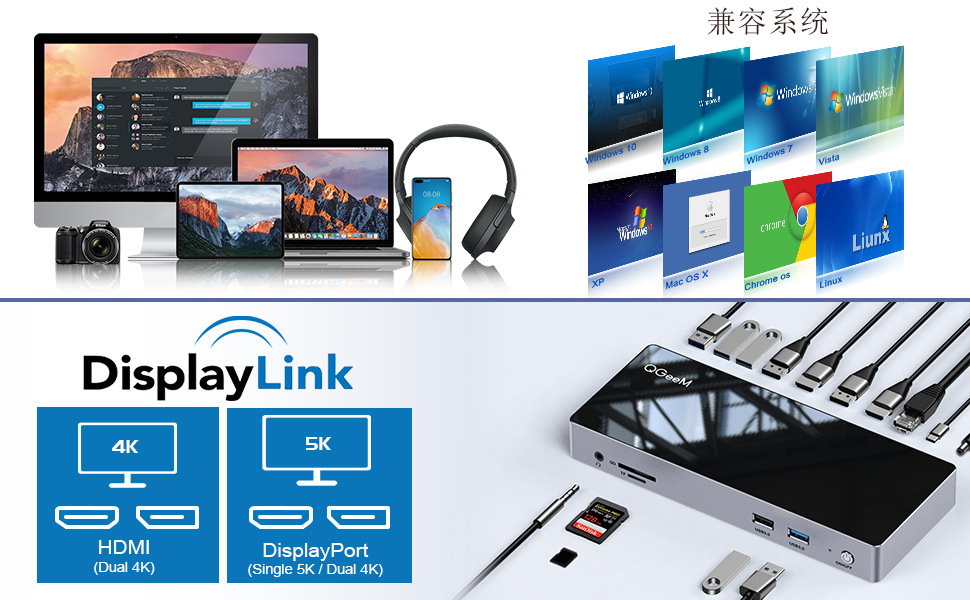

2） 它可以通过HDMI和DP端口支持双显示器显示。最大分辨率为双4/6Hz或单5K/60Hz。

3） 6xUSB3.0 A端口可支持USB设备，如USB磁盘、USB键盘和鼠标。

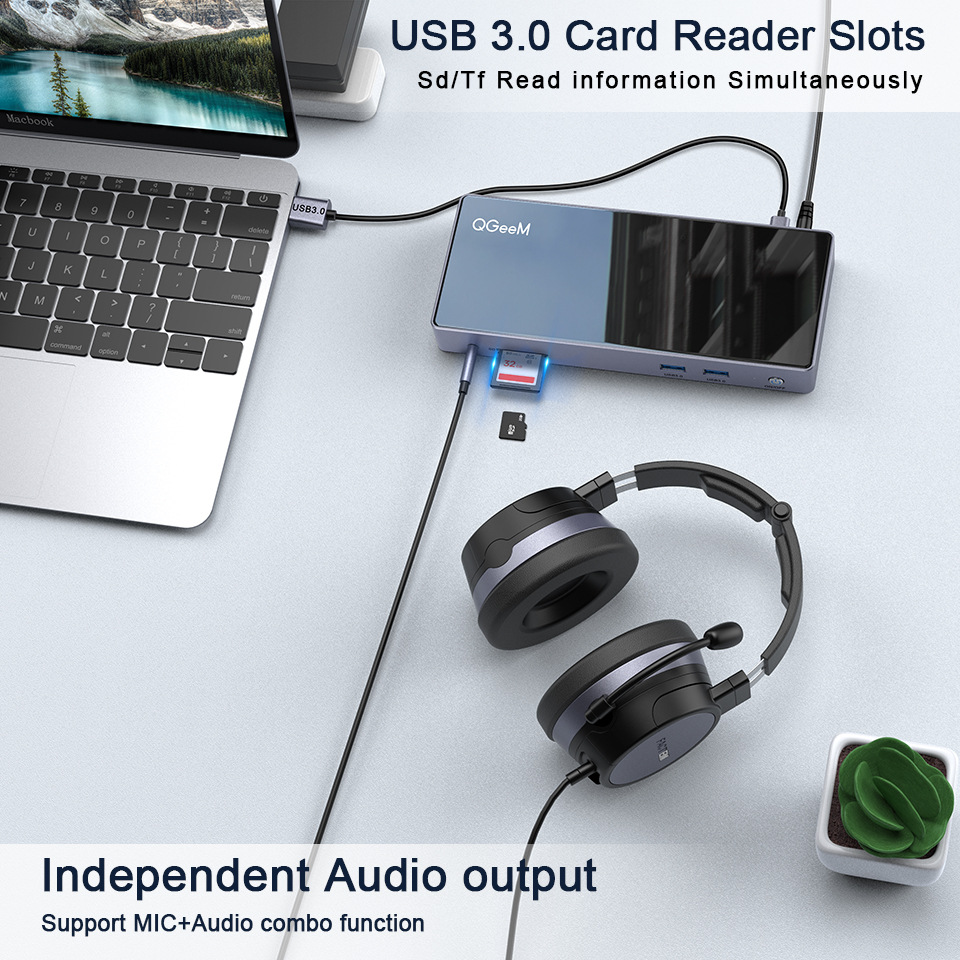

4） 读卡器同时支持SD和Micro SD读写。

5） 通过音频端口欣赏音乐，通过千兆以太网端口通过电缆实现快速网络速度。

2.特征

1.轻松设置：主/扩展/镜像视频模式

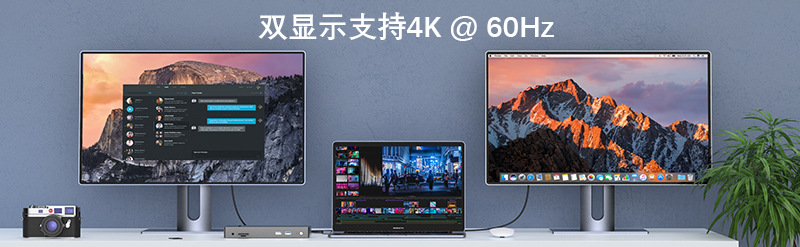

2.双监视器输出：通过HDMI/Displayport双4K@60Hz或单个5K/60Hz

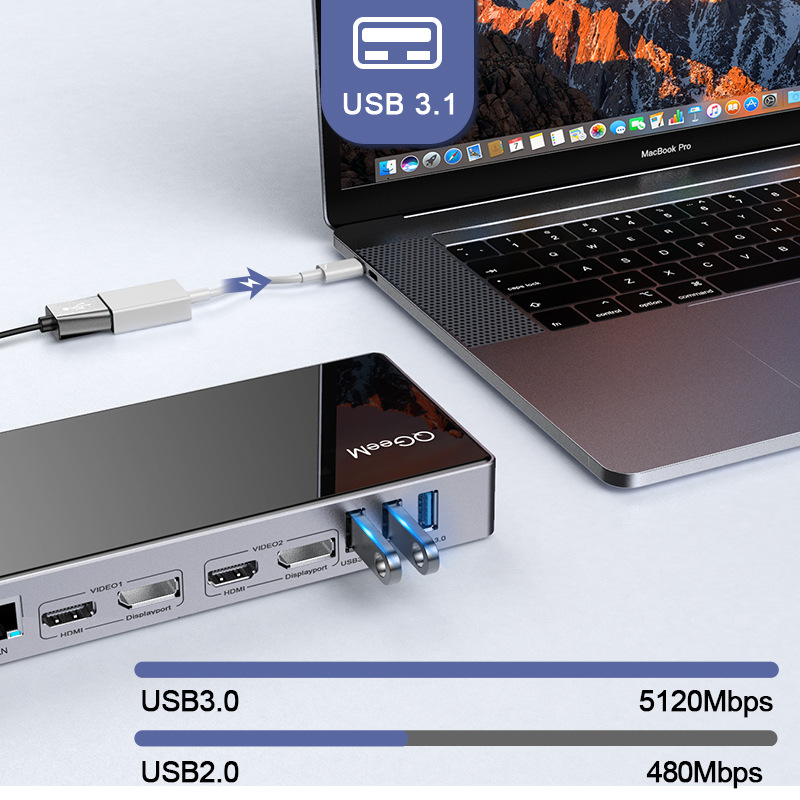

3.5Gbps高速：USB3.0端口向后兼容USB2.0（480Mbps）

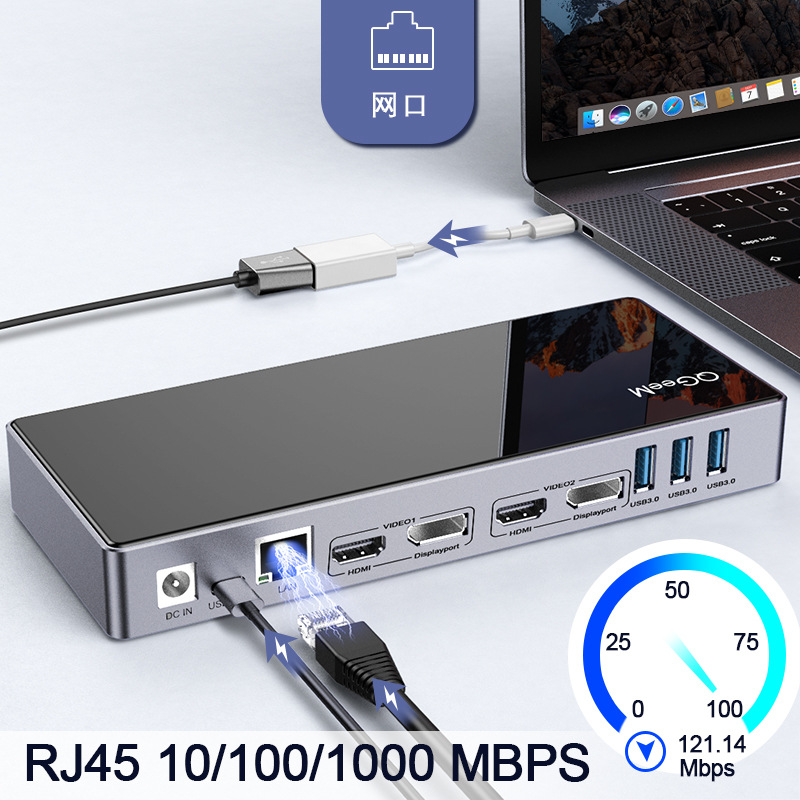

4.1000Mbps千兆以太网：向后兼容100/10Mbps以太网

5.音频插孔：支持耳机输出

6.5 X USB端口：支持6个USB设备一起运行

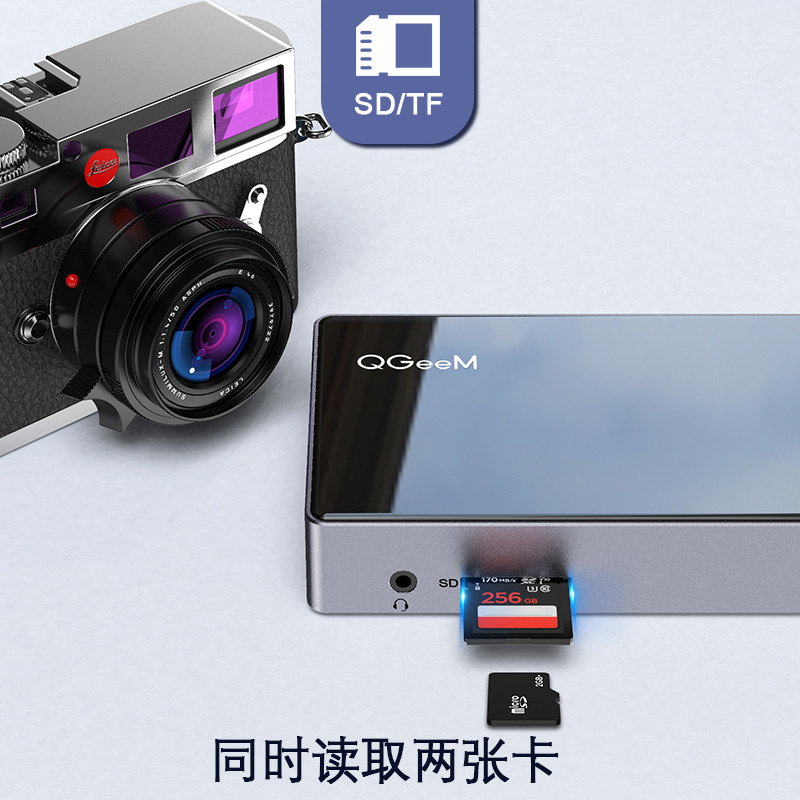

7.读卡器：支持SD和Micro SD同时读写。

8.广泛兼容Macbook Pro、Surface Pro 6、华为Matebook

9.冷却LED指示灯；小巧便携

10.太空灰铝合金外壳，如MacBook

11.防刮玻璃：硬度高达9H

12.支持Windows 7 8 10、MAC OS 10.5及以上版本

3.参数

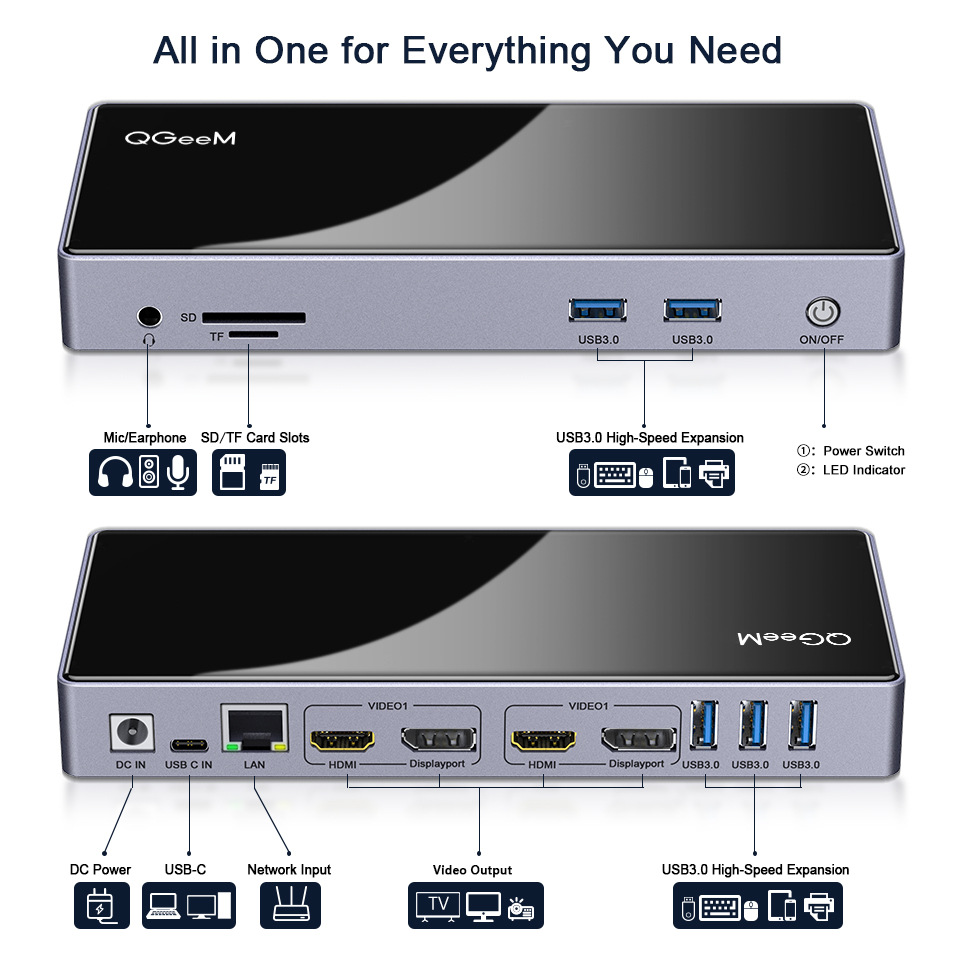

产品名称：15-IN-1双显示HDMI DP USB集线器扩展底座读卡器

输入端口1:20V2A充电电源端口

输入端口2:USB-C/A数据端口

输出端口1和2：2 x HDMI：4K@60Hz分辨率向后兼容

输出端口3和4：2 x DP：4K@60Hz分辨率向后兼容

输出端口5:1 x RJ45：支持10M/100M/1000Mbps千兆局域网

输出端口6-10:5 x USB-A 3.0:5Gbps数据传输，比USB 2.0快10倍

输出端口11:1 x音频：3.5mm插孔支持耳机输出

输出端口12:1 x SD：支持最大2TB读取

输出端口13:1 x TF:支持最大2TB读取

输出端口14:1 x开关按钮：环保且易于控制开/关

兼容设备：

Mac Book Pro、小米、三星、戴尔、华硕、华为、联想、谷歌、，

三星S8/S8+/S9/S9+/S10/S10+，华为Mate 10/20/P20/P30

例如具有标准TYPE-C端口的计算机和移动电话。

支持系统：

谷歌Chrome操作系统；Windows 7/8/10；XP；Linux；远景即插即用，支持标准Type-C接口和PD充电协议的笔记本电脑。

材料：铝合金金属中间框架和防刮玻璃USB C集线器

净重：537g优质C型轮毂坞

横向重量：973g高品质C型轮毂坞

尺寸：20.5x8.5x2.7cm便携式USB集线器

颜色：适用于Macbook Pro的深灰色USB-C集线器3.0

电缆长度：0.8m USB 3.1 C型集线器

USB3.0输出：5V/0.9A 4.5W输出

功能：移动电话扩展底座

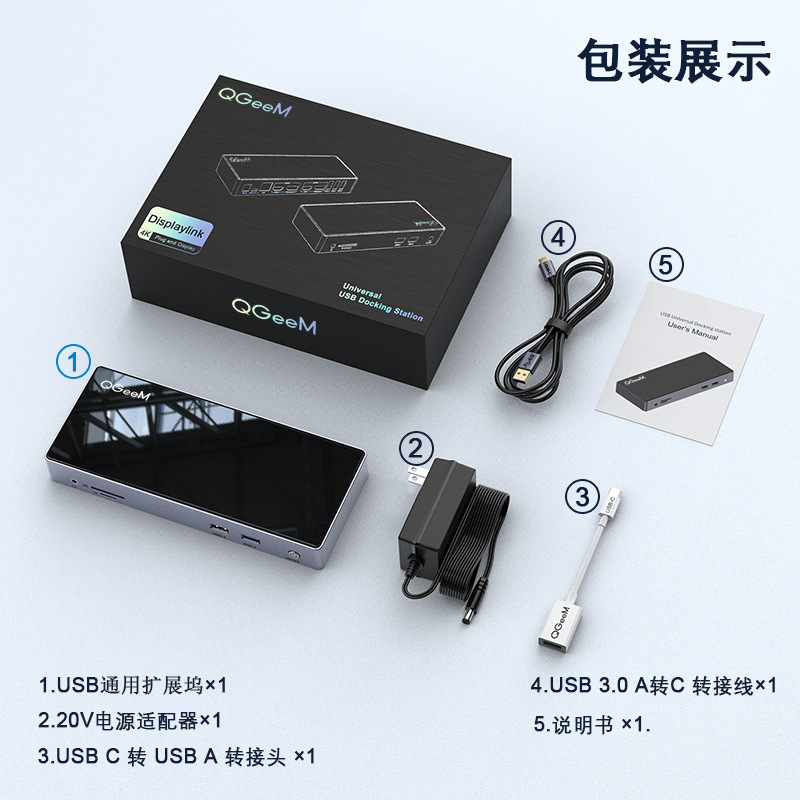

4.包装

1.通用扩展底座x1

2.超高速电缆x1

3.20V电源适配器x1

4.用户手册x1

5.注意事项

1） 由于USB3.0标准电流为1A，如果当计算机负载超过1A时，新Macbook的电流输出约为1A，则计算机将启动自我保护功能并提示：USB功耗大，禁用。
此时，您需要拔下集线器，关闭禁用图标或重新启动计算机，然后检查新连接的设备。

2） 如果连接了硬盘等耗电量较大的设备，当无法正常连接和使用时，请拔下其他U盘设备的插头，以便大功率USB设备正常供电。

3） 负载电流在不同设备之间变化很大。为相关设备提供以下参考电流。
USB移动硬盘：550mAh/1.5A
U盘：200mAh/350mAh
鼠标：100mAh，游戏鼠标敢达350mAh；
SD卡：150mAh-300mAh
HDMI：350mAh

4） 计算机负载保护电流为1.5A。计算机负载保护会导致外部设备中断或异常运行。
为了确保超过1.5A的电流负载能够正常工作，该产品只能加载一个USB移动硬盘，不适合同时插入两个大电流USB设备。

5） 本产品根据实时USB3.1标准规范设计。产品制造后，它可能与超过标准规范的产品或设备不兼容，这是正常的。
该产品是高性能TYPE-C到USB3.0集线器和多功能产品

英文版详情

QGeeM 15-IN-1 USB 3.0 Hub Docking Station for Macbook Pro Air 13 2020 Xiaomi Laptops Chromebook Notebook Surface pro 7 Tablets 5K/ Dual 4K 60Hz Display Power Charger USB Multi Port RJ45 Lan USB Type C Hub Splitter 6 USB 3.0 2 HDMI 2 DP RJ45 Gigabit Ethernet SD/TF Card Reader Audio Dock OTG Adapter PC Computer Accessories

1. Product Introduce:

1) Thanks for buying the QGeeM Dual-display multi-function docking station for Laptops.

2)It can support dual monitors display by HDMI and DP Port. Maximum resolution is dual 4/60Hz or single 5K/60Hz.

3)6xUSB3.0 A ports can support USB devices such as USB Disk, USB Keyboards, and Mouse.

4)Card Readers support SD and Micro SD read & write at the same time.

5)Enjoy music through an Audio port and fast Network speed by cable through a Gigabit Ethernet port.

2. FEATURE

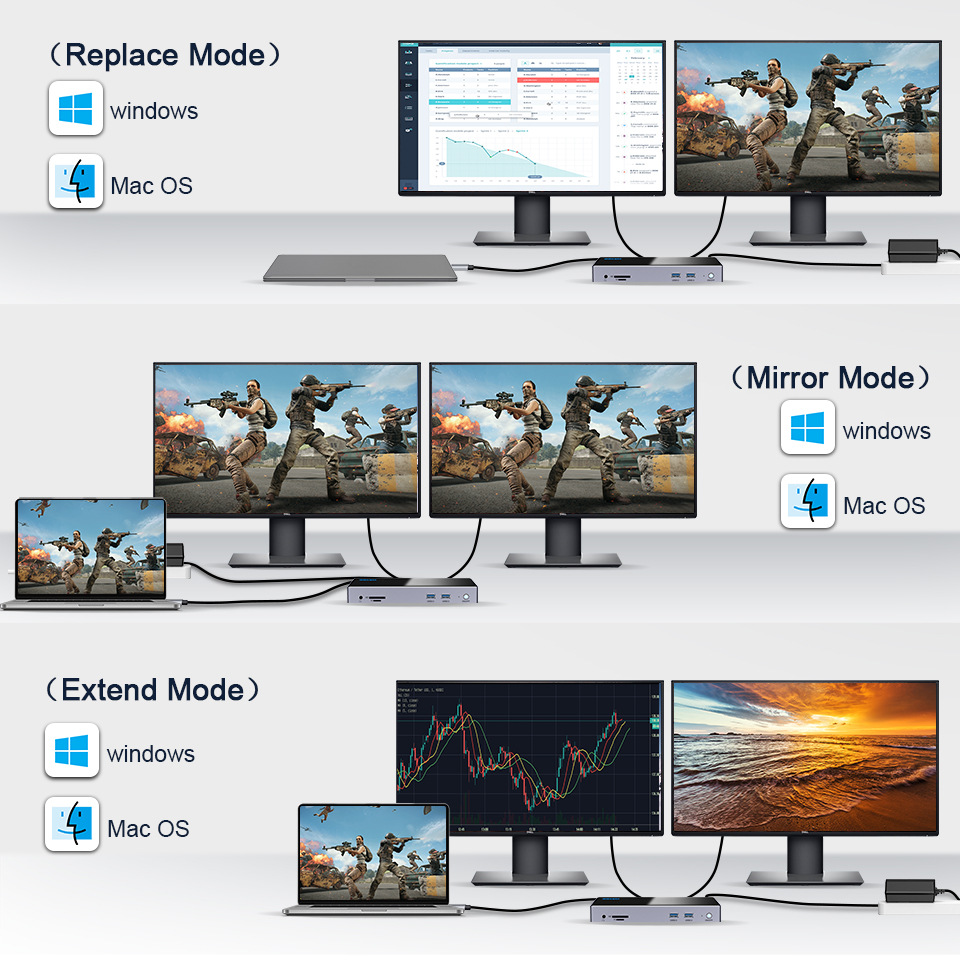

1. Easily setting: Primary / Extend / Mirror Video Mode

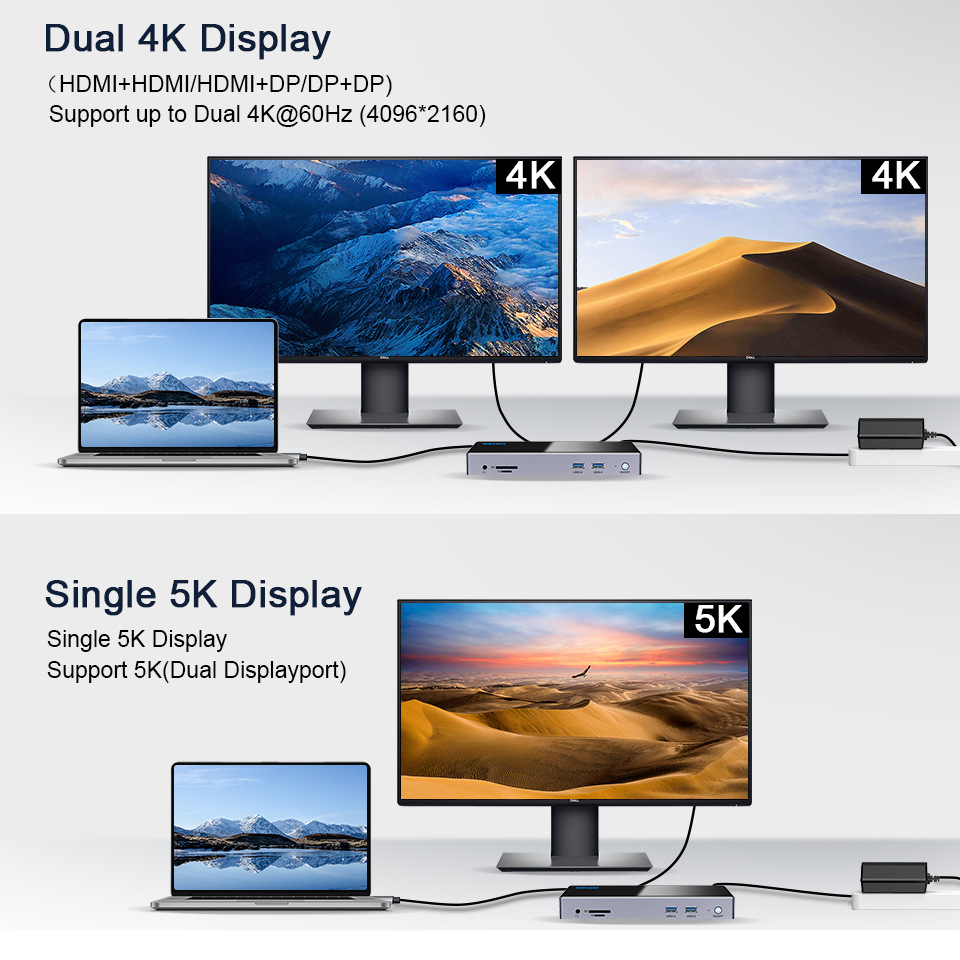

2. Dual Monitors Output: by HDMI/ Displayport dual 4K@60Hz or single 5K/60Hz

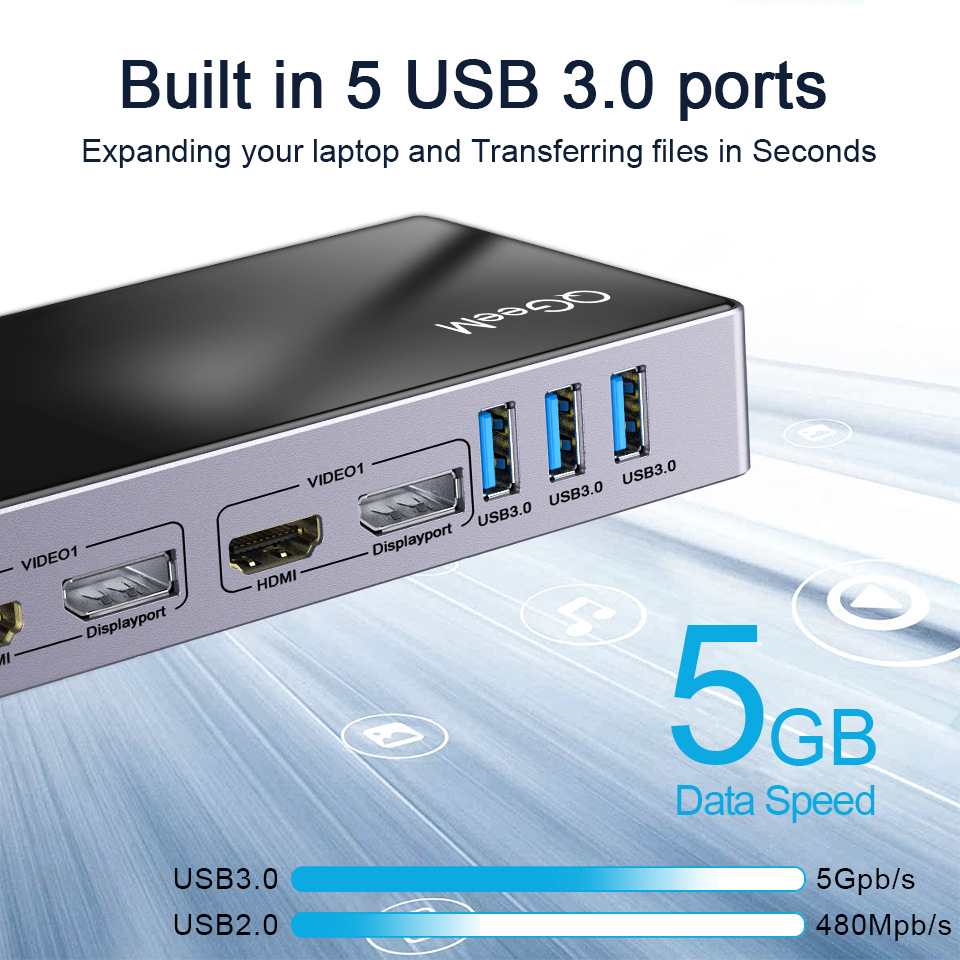

3.5Gbps High Speed: USB3.0 Port Backward Compatible with USB2.0(480Mbps)

4.1000Mbps Gigabit Ethernet: Backward Compatible with 100/10Mbps Ethernet

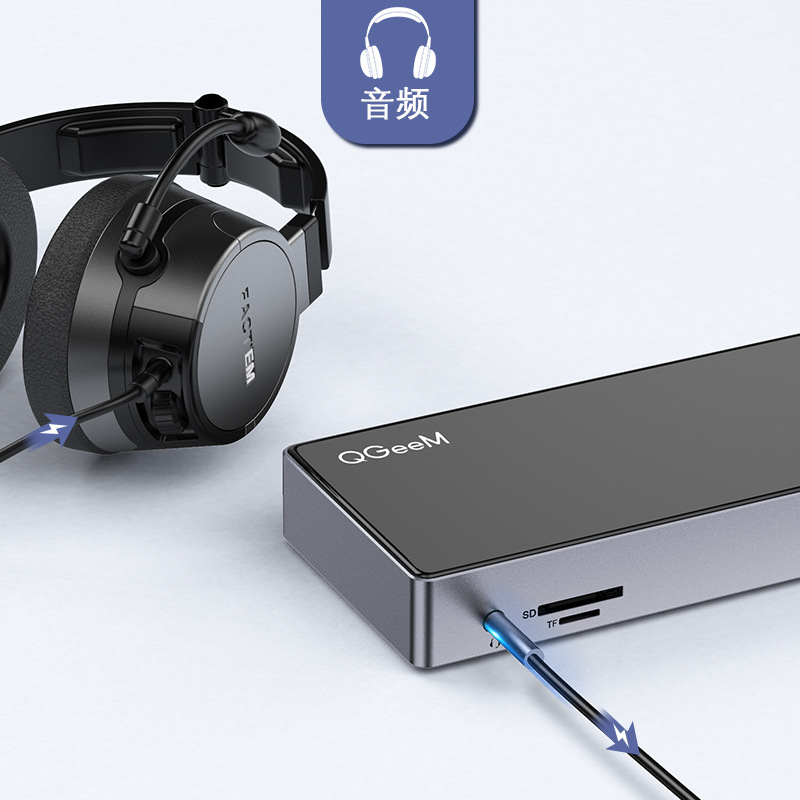

5. Audio Jack: Support Earphone output

6.5 X USB Ports: Support 6 USB devices running together

7. Card Readers: Support SD and Micro SD reading & writing at the same time.

8. Widely Compatible with Macbook Pro, Surface Pro 6, Huawei Matebook

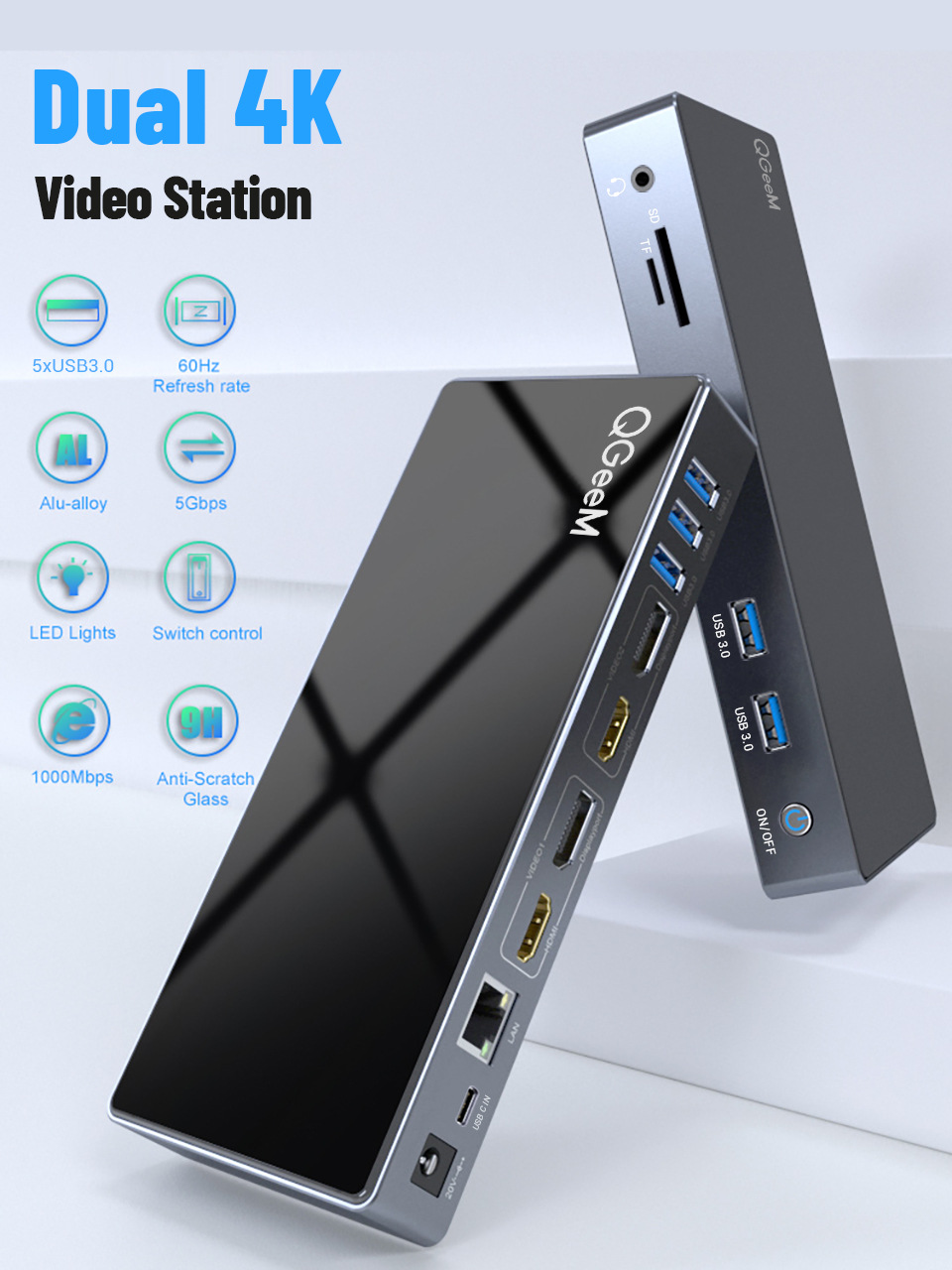

9. Cool LED Indicator; Compact & Portable

10. Space Grey Alu-Alloy Shell as MacBook

11. Anti-Scratch Glass: Up to 9H Hardness

12. Support Windows 7 8 10, MAC OS 10.5 and above

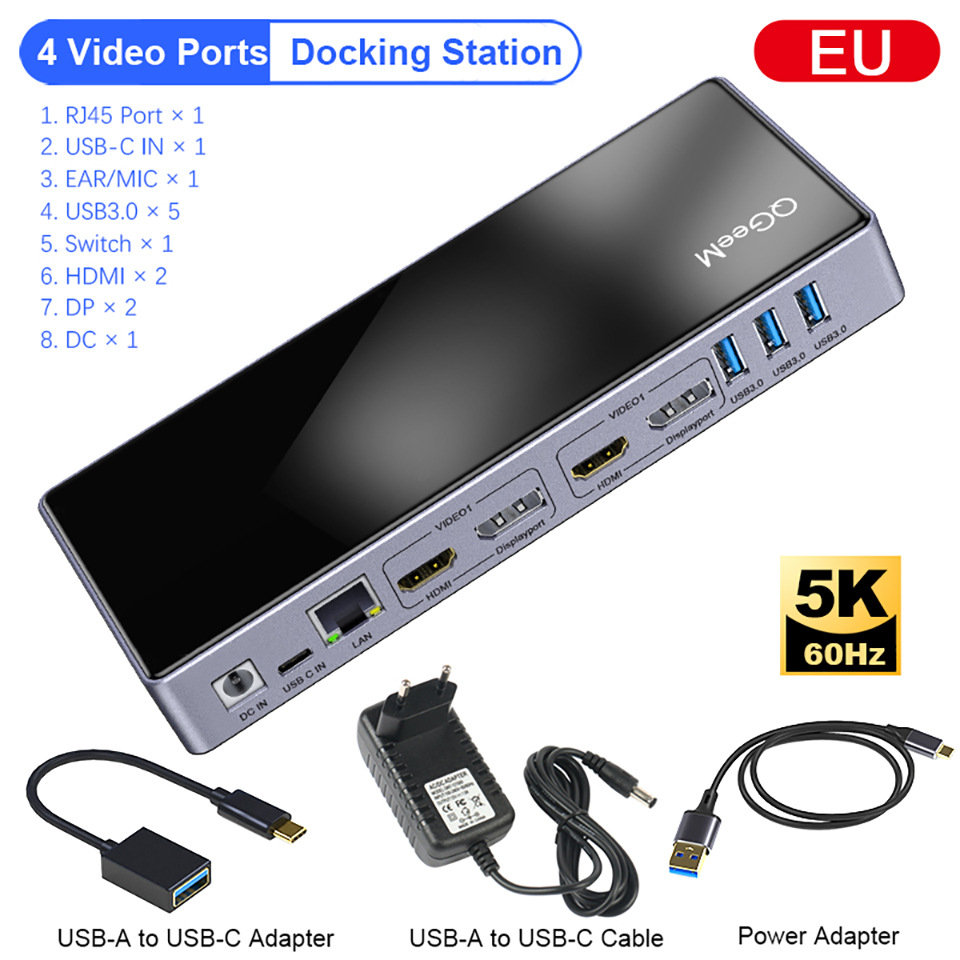

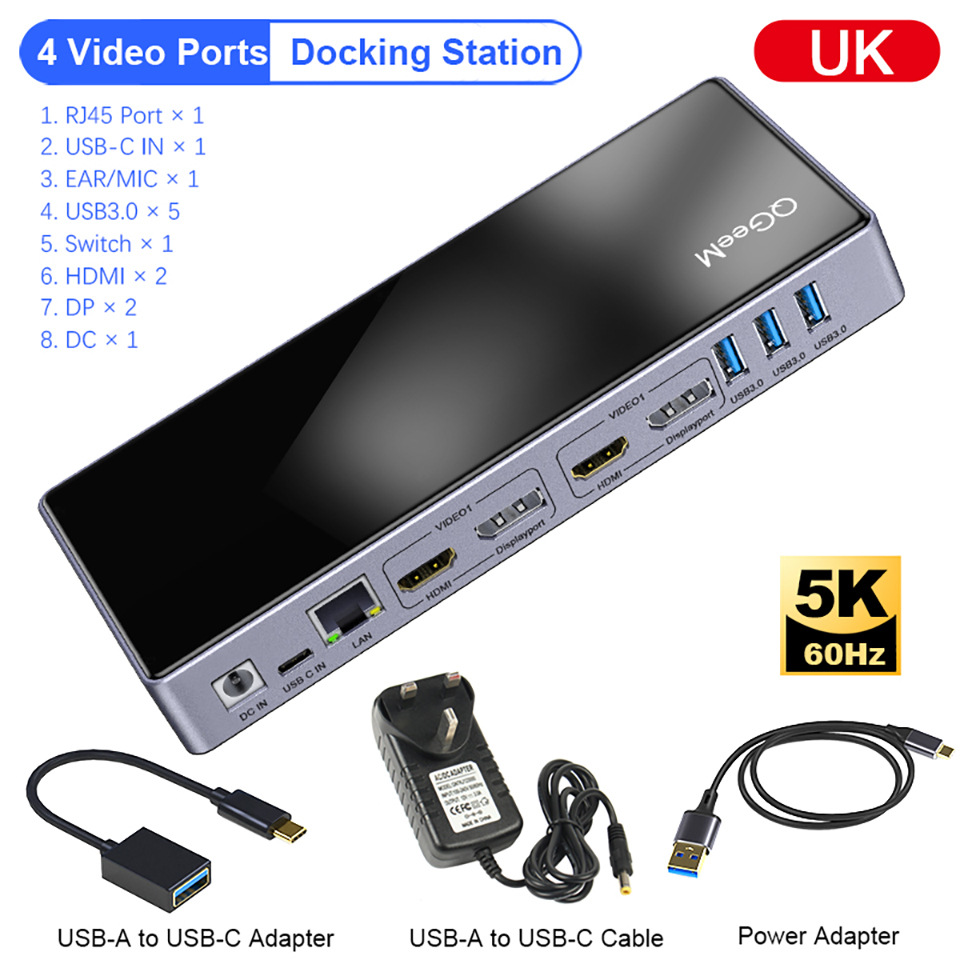

3.Specification

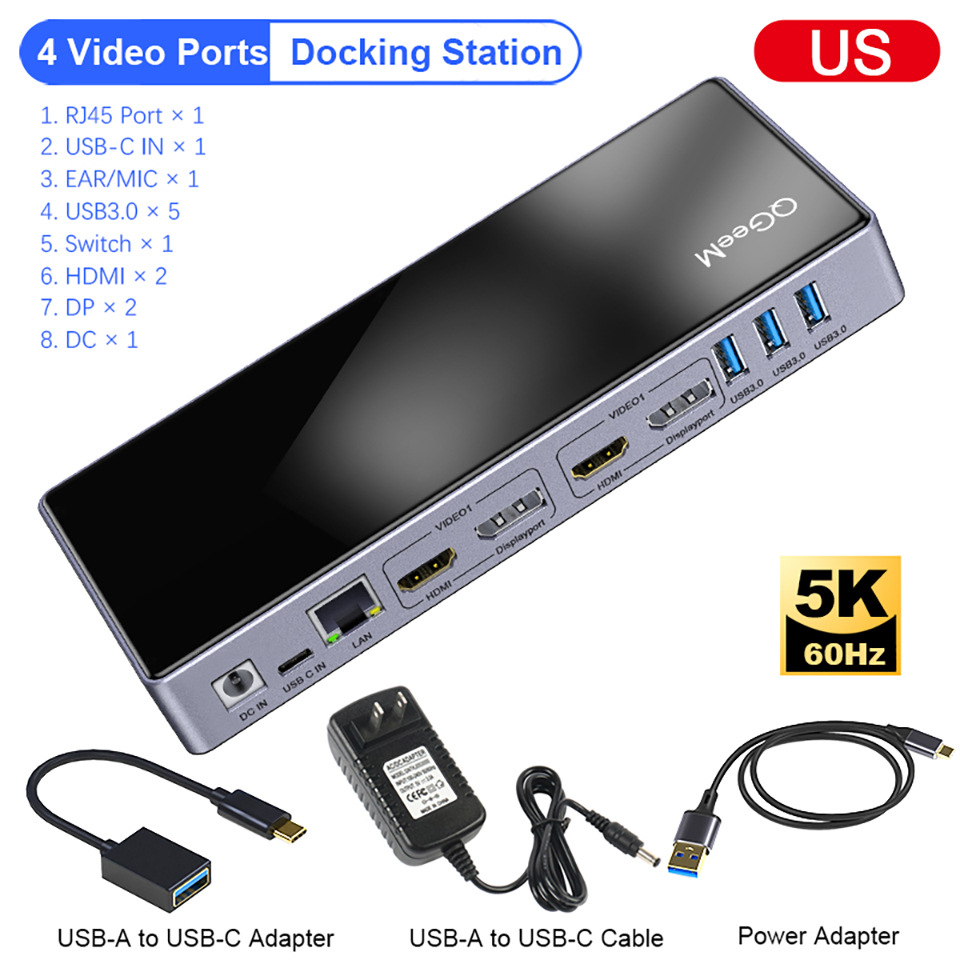

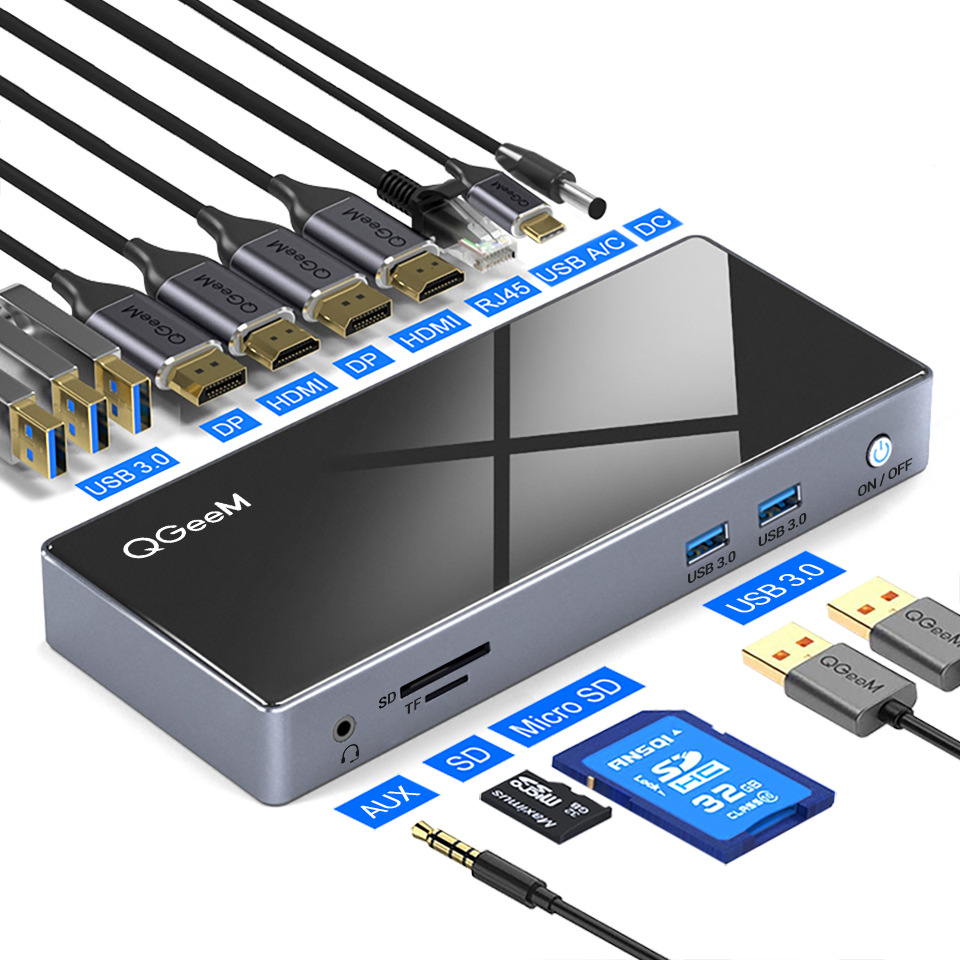

Product name: 15-IN-1 dual-display HDMI DP USB Hub Docking Station Card Reader

Input port 1:20V2A charging power port

Input port 2: USB-C/A data port

Output ports 1 and 2:2 x HDMI: 4K@60Hz Resolution backward compatible

Output ports 3 and 4:2 x DP: 4K@60Hz Resolution backward compatible

Output port 5:1 x RJ45: support 10M/100M/1000Mbps Gigabit LAN

Output port 6-10:5 x USB-A 3.0: 5Gbps data transmission, 10 times faster than USB 2.0

Output port 11:1 x audio: 3.5mm jack supports headphone output

Output port 12:1 x SD: support maximum 2TB read

Output port 13:1 x TF: support maximum 2TB read

Output port 14:1 x switch button: environmentally friendly and easy to control on/off

Compatible devices:

Mac Book Pro, Xiaomi, Samsung, Dell, ASUS, Huawei, Lenovo, Google

Samsung S8/S8+/S9/S9+/S10/S10+, Huawei Mate 10/20/P20/P30

For example, computers and mobile phones with standard TYPE-C ports.

Support system:

Google Chrome operating system; Windows 7/8/10； XP； Linux； Vision Plug and Play, which supports standard Type-C interface and PD charging protocol.

Material: aluminum alloy metal intermediate frame and scratch-resistant glass USB C hub

Net weight: 537g high-quality C-type hub dock

Transverse weight: 973g high-quality C-type hub dock

Size: 20.5x8.5x2.7cm portable USB hub

Color: Dark gray USB-C hub 3.0 for Macbook Pro

Cable length: 0.8m USB 3.1 C-type hub

USB3.0 output: 5V/0.9A 4.5W output

Function: Mobile phone docking station

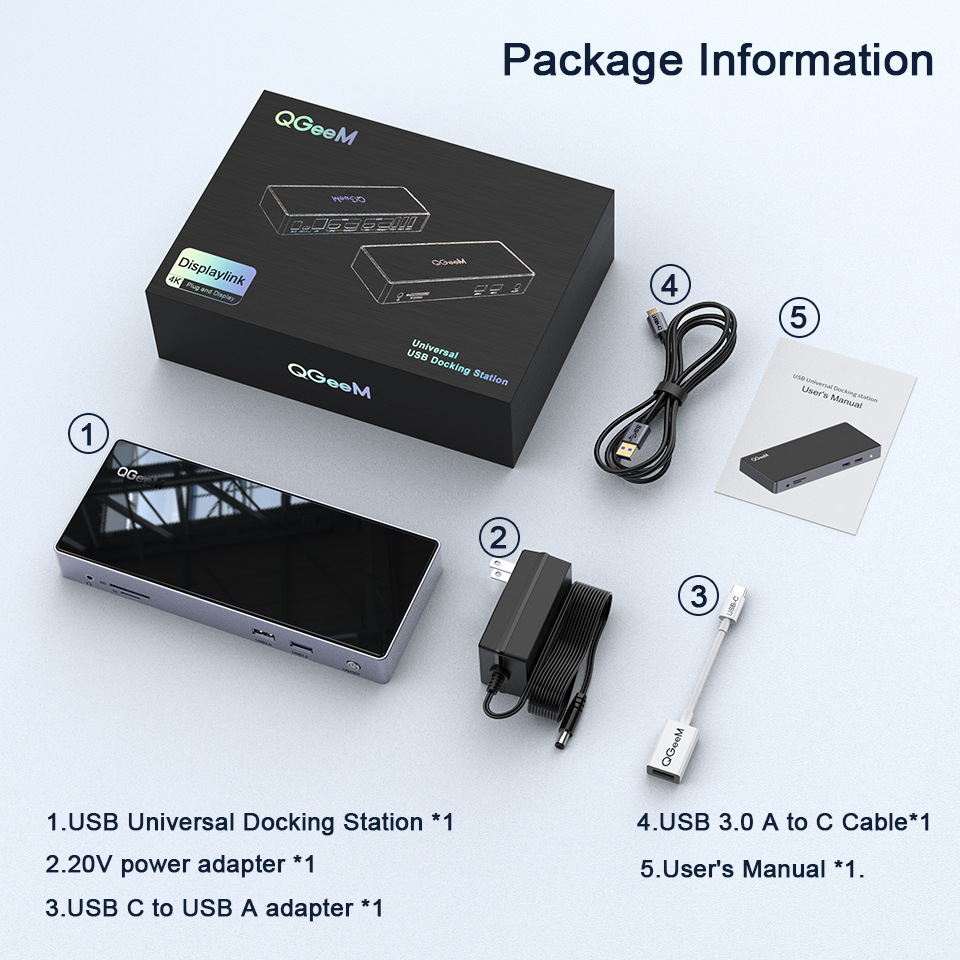

4. PACKAGE

1. Universal Docking Station x1

2. Superspeed Cable x1

3.20V power adapter x1

4. User Manual x1

5. Precautions

1) Since the USB3.0 standard current is 1A, if the current output of the new Macbook is about 1A when the computer load exceeds 1A, the computer will start the self-protection function and prompt: USB power consumption is high, disable.

At this time, you need to unplug the hub, turn off the disabled icon or restart the computer, and then check the newly connected devices.

2) If a device with high power consumption such as a hard disk is connected, when it cannot be connected and used normally, please unplug the plug of other USB devices so that the high-power USB device can be powered normally.

3) The load current varies greatly between different devices. Provide the following reference current for relevant equipment.

USB mobile hard disk: 550mAh/1.5A

U disk: 200mAh/350mAh

Mouse: 100mAh, game mouse dare to reach 350mAh;

SD card: 150mAh - 300mAh

HDMI：350mAh

4) The computer load protection current is 1.5A. Computer load protection can cause external devices to interrupt or run abnormally.

In order to ensure that the current load exceeding 1.5A can work normally, this product can only load one USB mobile hard disk, which is not suitable for inserting two high-current USB devices at the same time.

5) This product is designed according to real-time USB 3.1 standard specifications. After the product is manufactured, it may not be compatible with products or equipment that exceed the standard specifications, which is normal.

This product is a high-performance TYPE-C to USB3.0 hub and multi-function product
