Compliant with PCIE 4.0 X4 64Gbps full speed support
Movable M.2 NVMe stand-off and multiple plated-holes supports type 2280, 2260 2242 and 2230 SSD
Supports dual-sided SSD module 1.5mm component height on the top and bottom side
This adapter is only for NVME M.2 PCIe SSD, doesn't support SATA connection
operating temperature range: -40 - 85 C / M.2 PCIe SSD power from PCIe bus slot 3.3V
Led indicators for power and access

Add NVMe SSD on Old Motherboard

Older motherboards without M.2 slots can use this adapter card to install a super fast M.2 drive.

Mutli Protection to Protect Your Data

Multi-layer PCBA, Multi-layer protection: Overcurrent protection，Overvoltage protection，Short circuit protection，EMI (Electromagnetic Interference) protection, Heatsink layer for overheat protection .

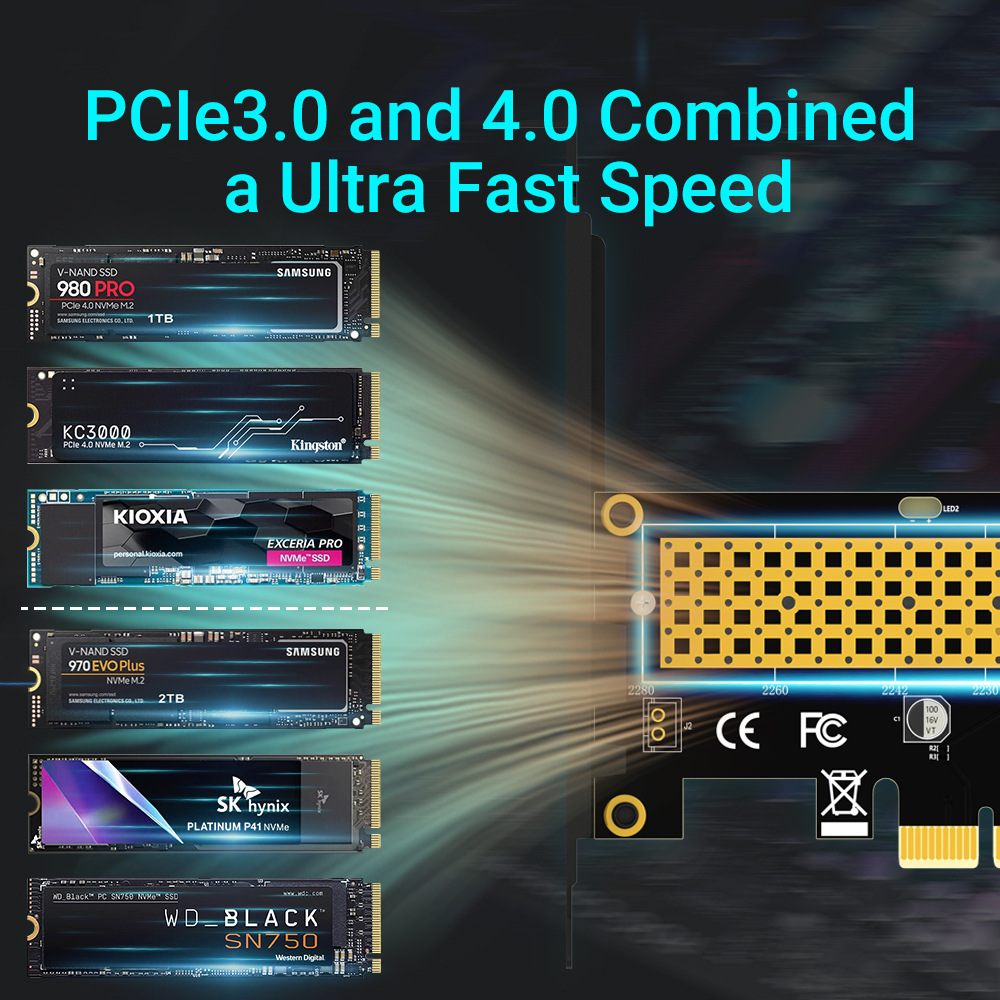

PCIe 3.0 and 4.0 Combined a Ultra Fast Speed

Backward Compatible with PCIe 3.0 2.0 1.0

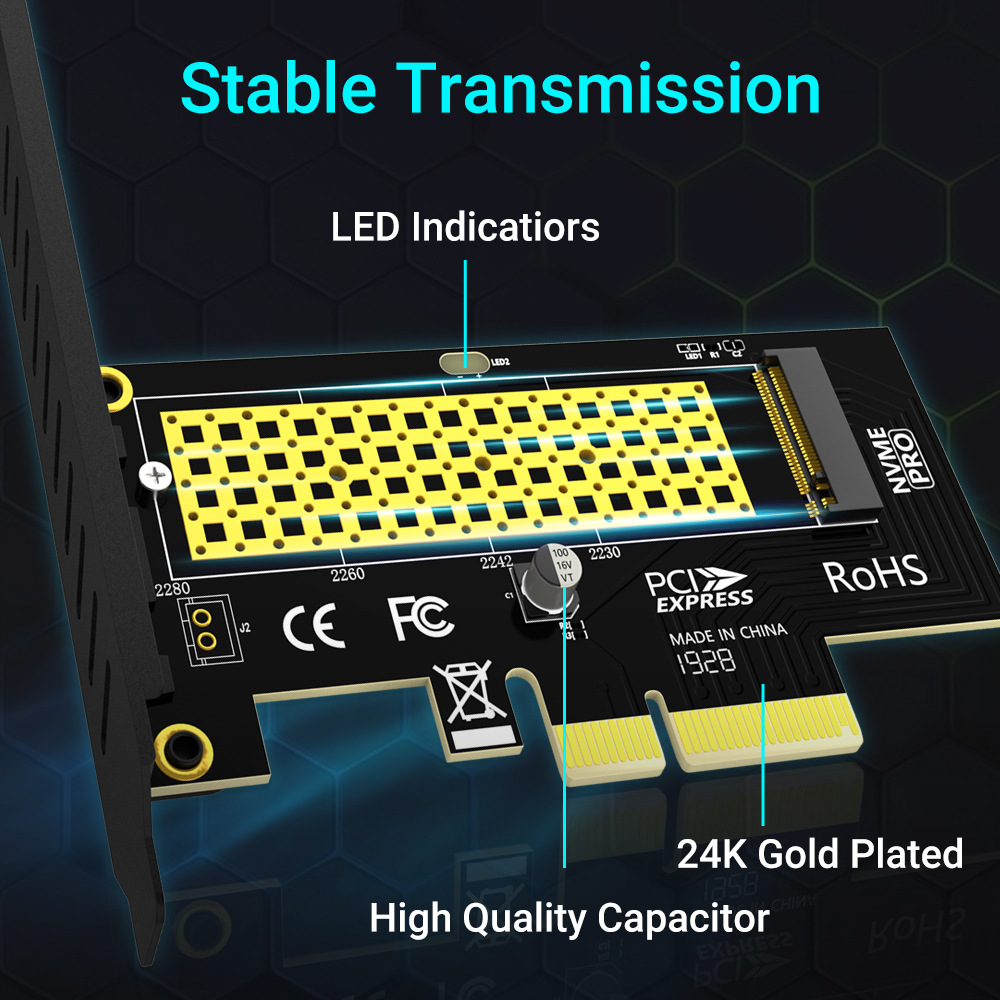

Safe and Stable Transmission

It is built with a high-quality capacitor and gold-plated interface to ensure information security and stable transmission. The vented design on immersion gold PCB enhances heat dissipation of SSD. Comes with a bracket, the best choice for a 2U case.

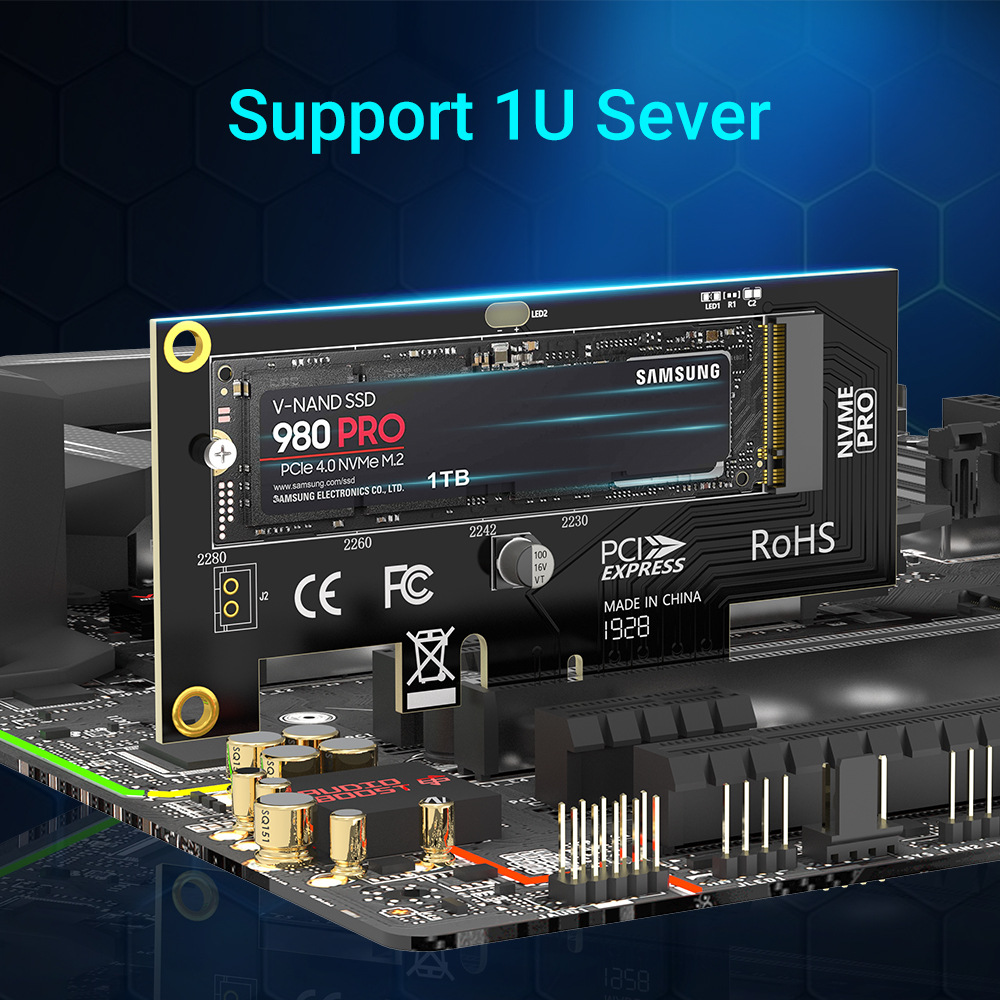

Support 1U Sever

The adapter will hold stable installed on a 1U cabinet or low profile cabinet

Support Multiple OS

Supports Windows 10/8、Windows Server 2012 R2、Linux、Fedora、SUSE、Ubuntu、Red Hat（no driver required）

Additional NVMe driver required for Win7 and Windows Server 2008 R2

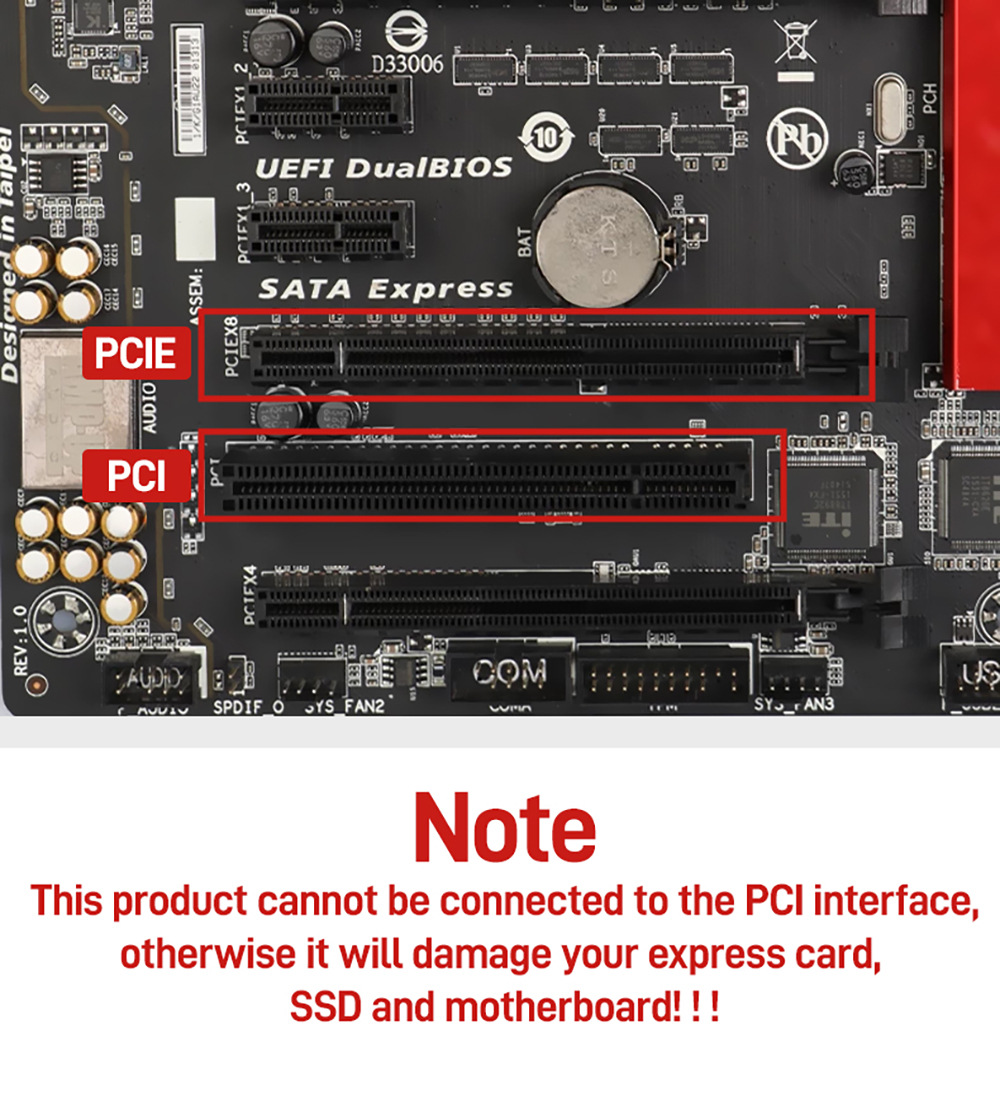

Note: This product cannot be connected to the PCl interface, otherwise it will damage your express card, SSD and motherboard! ! !

Package content：

M.2 to PCIe Adapter ✖ 1
Profile ✖ 1
Cabinet screw ✖ 1
SSD screw ✖ 1
Screw driver ✖ 1
Cabinet Screw X1
M.2 Heatsink X 1
Silicone thermal Pad X 1
Rubber Rings X 3
