HDMI中继器40M HDMI40米信号放大器hdmi高清延长器母对母支持4K2K

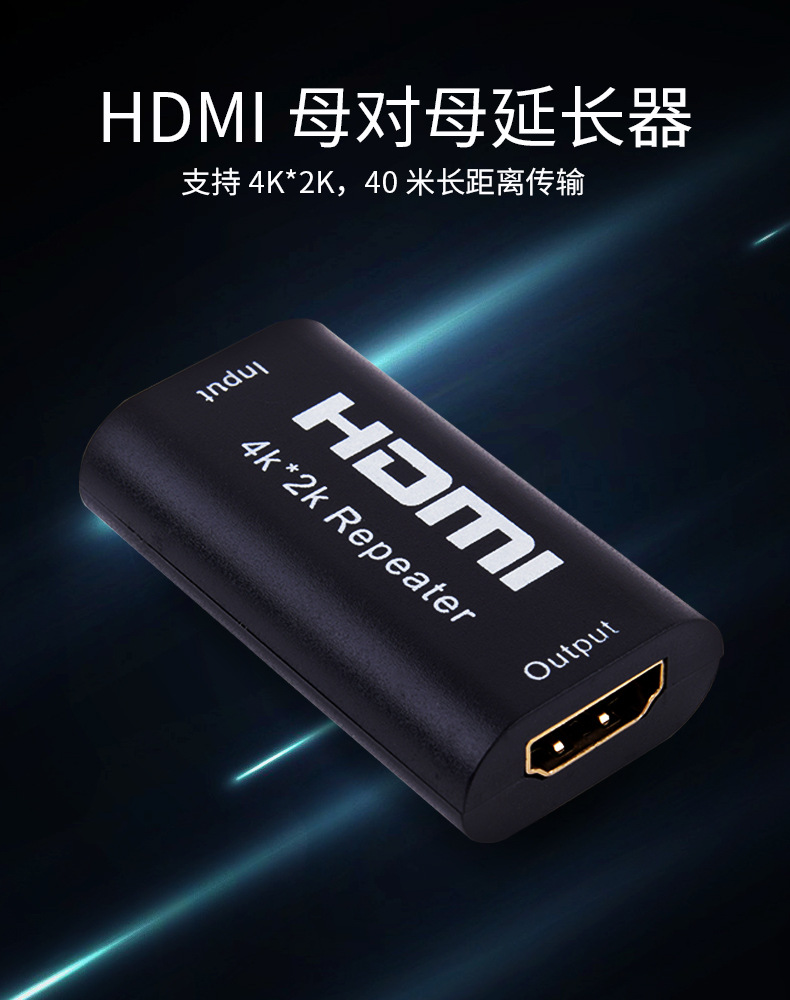

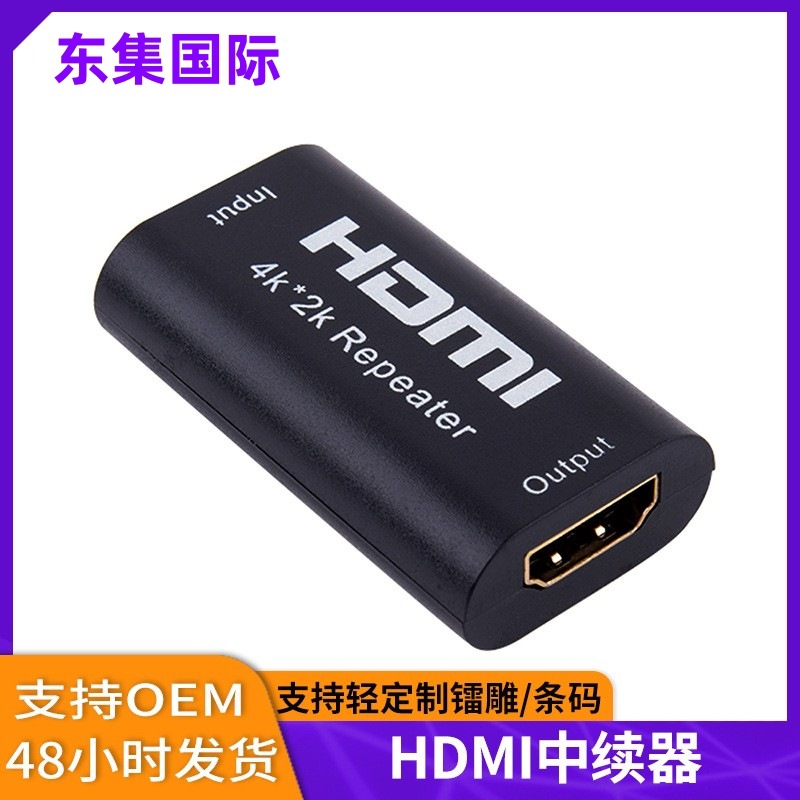

【产品名称】厂家直销 HDMI中继器母对母信号延长 HDMI放大器 支持4K*2K

【产品介绍】

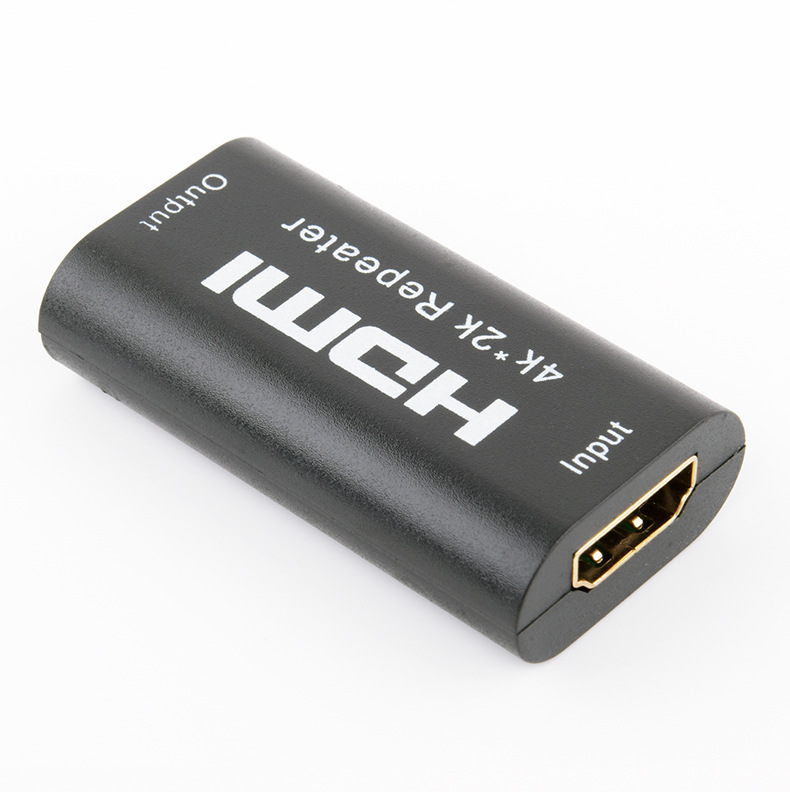

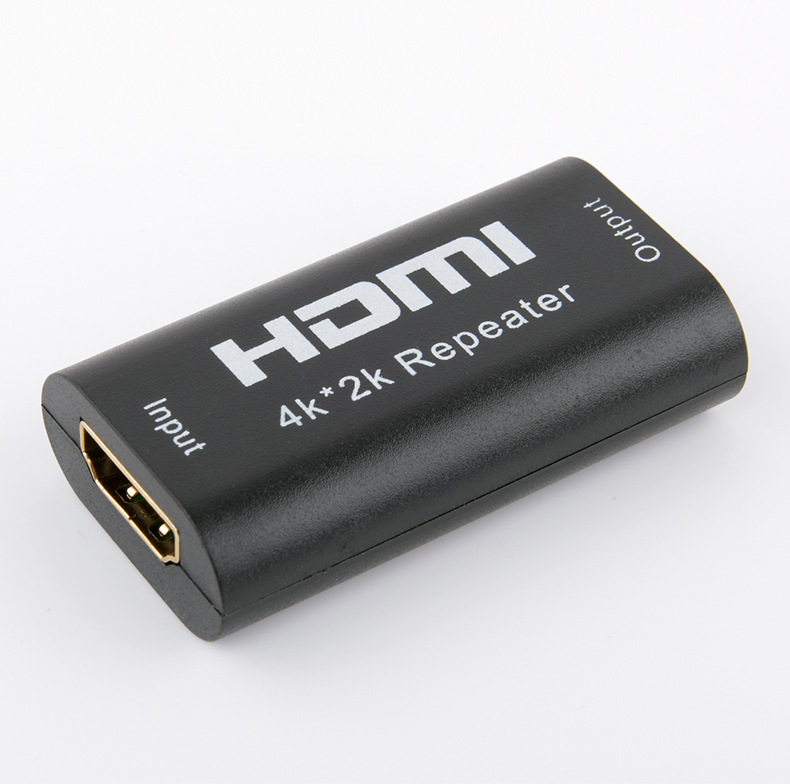

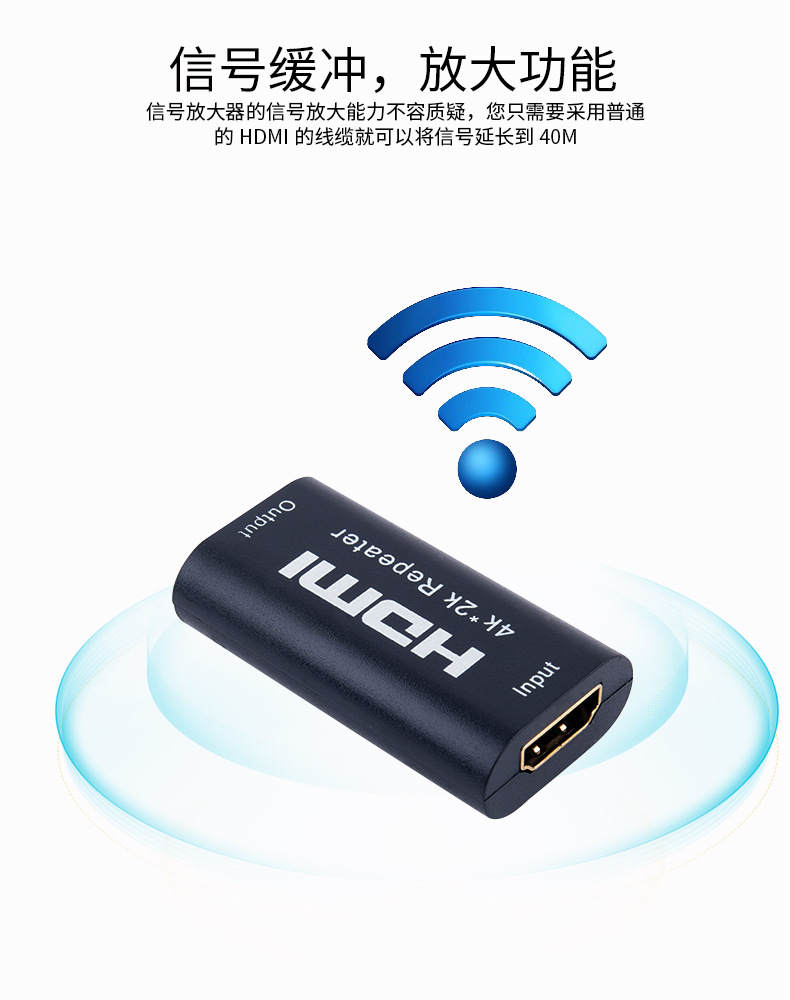

HDMI放大器是无源放大器，无需另外接电源。放大器有极性，不能接反，INPUT接输入接信号源，OUT接输出接显示设备。

无源放大器不能把失真信号还原，作用在于把快要失真的信号放大使其不失真。

举例：1.要把1条10米和1条20米的HDMI线连接起来，首先要保证20米的线能独立使用，如果20米的线不能单独使用，说明信号已经失真，加延长器是没作用的。反之20米的能独立使用，那就可以用延长器把2条线连接起来就有30米的距离了。

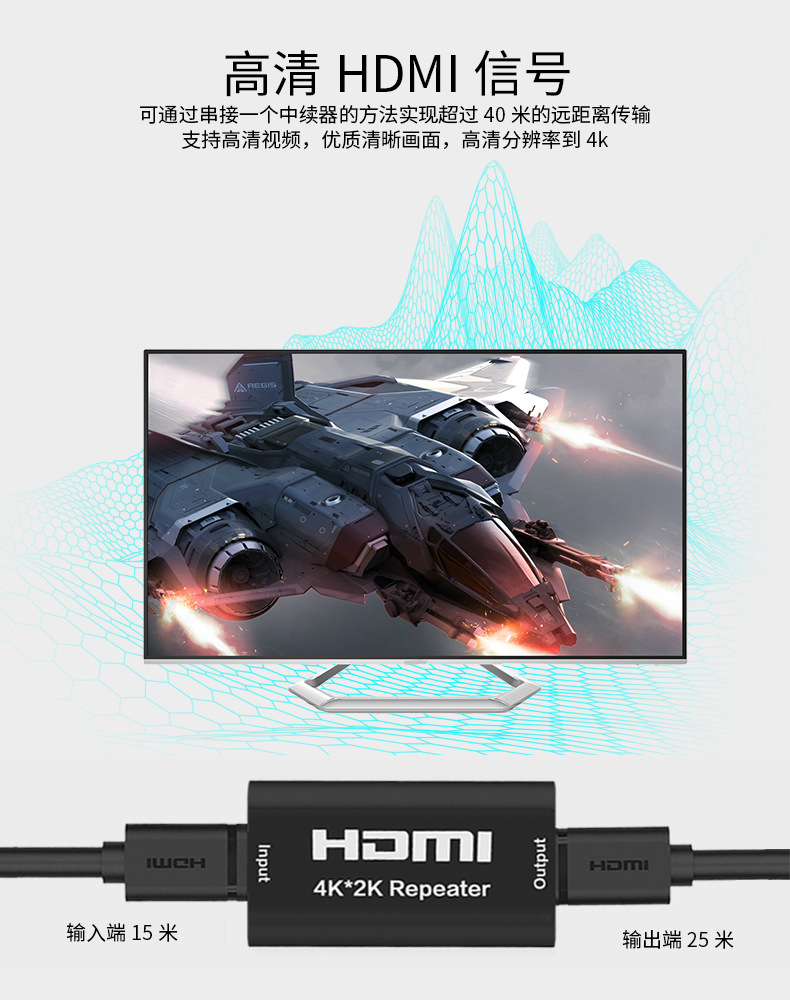

所以如果想把2条线连接起来使用，就必须保证这2条线能单单使用，1条15米，1条20米的线能单独使用，那么用延长器连接起来40米一样可以使用。

【产品规格】

1.HDMI：符合HDMI 1.4

2.HDMI HDCP：符合HDCP 1.1

3.操作频率: 165 mhz

4.HDMI数据率: 1.65 g bps(单链接)

5.输入/输出分辨率:高清:480 i@60hz 480 i@50hz 480 p@60hz 576 p@50hz 720 p@60hz 720 p@50hz 1080 i@60hz 1080 i@50hz 1080 p@60hz 1080 p@50hz 1080 p@30hz,1080 p@25hz,1080 p@24hz

6.支持3D

7.与双绞线电缆距离支持:超过40米

The manufacturer directly sells HDMI repeater mother-to-mother extended HDMI amplifier support 4K*2K
[Product Introduction]

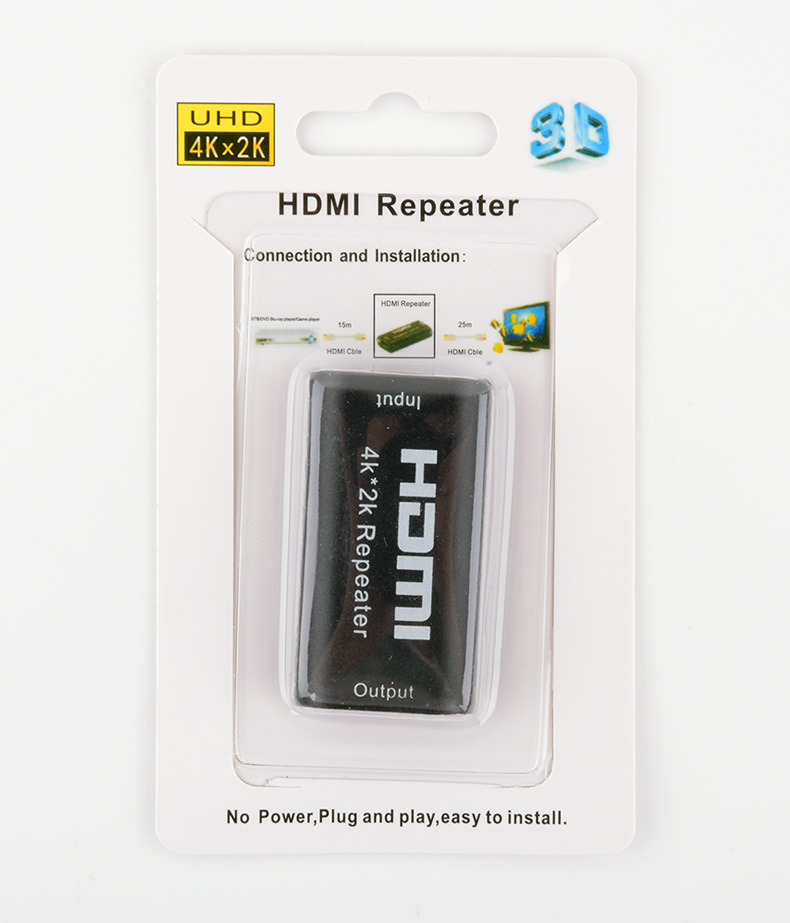

HDMI amplifier is a passive amplifier without additional power supply. The amplifier has polarity and can't be reversed. INPUT is connected with input signal source and OUT is connected with output display device.
Passive amplifier can not restore the distorted signal. Its function is to amplify the distorted signal so that it is not distorted.
For example: 1. To connect a 10m HDMI line with a 20m HDMI line, the first thing is to ensure that the 20m line can be used independently. If the 20m line can not be used independently, the signal has been distorted and the lengthener is useless. Conversely, 20 meters can be used independently, so you can use an extender to connect the two lines, there is a distance of 30 meters.
So if you want to connect the two lines, you must ensure that the two lines can be used alone, a 15-meter, a 20-meter line can be used alone, then the extension device can be used as 40 meters.
[Product Specification]
1. HDMI: Compliance with HDMI 1.4
2. HDMI HDCP: Compliance with HDCP 1.1
3. Operating frequency: 165 MHz
4. HDMI data rate: 1.65 g BPS (single link)
5. Input/output resolution: HD: 480 i@60 Hz 480 i@50 Hz 480 p@60 Hz 576 p@50 Hz 720 p@60 Hz 720 p@50 Hz 720 p@50 Hz 1080 i@60 Hz 1080 i@50 Hz 1080 p@60 Hz 1080 p@60 Hz 1080 p@50 Hz 1080 p@50 Hz 1080 p@30 hz, 1080 p@25 hz, 1080 p@24 Hz
6. support 3D
7. Distance support with twisted pair cable: more than 40 meters
