拍前须知：本店所标价格均不含税，开票需另外加税点，详情请咨询客服。

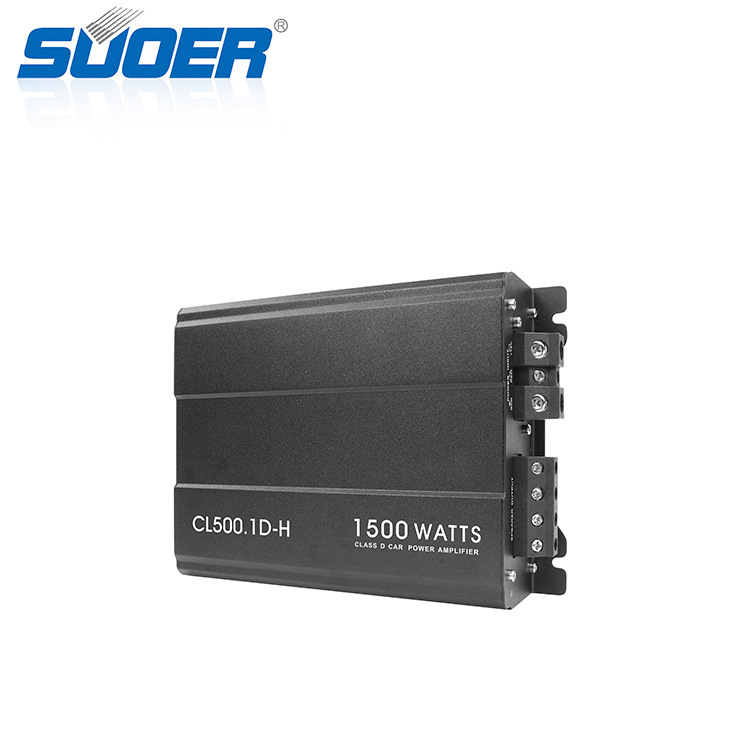

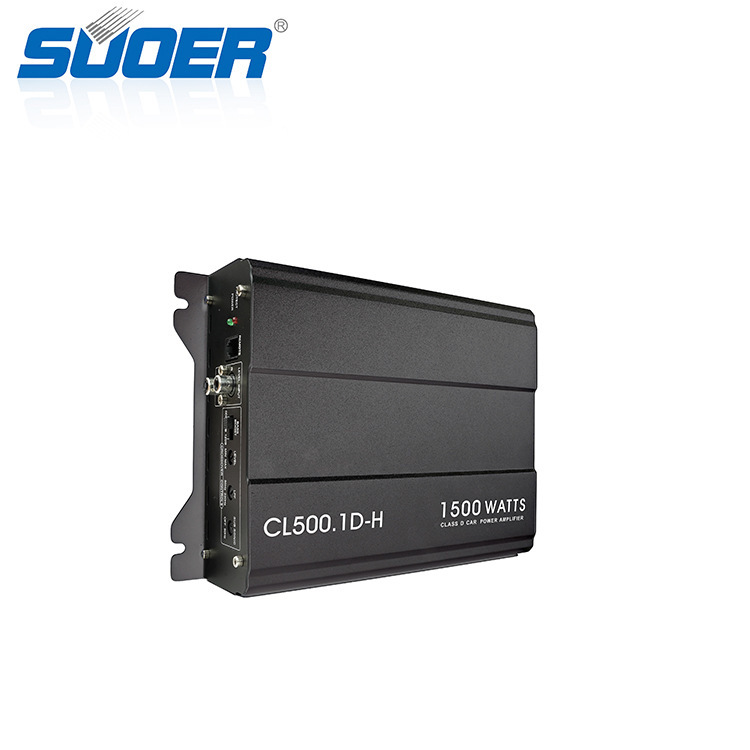

Model CL500.1D-H
Product Type Class D Monoblock
Working Voltage DC12-16V
RMS Power(THD=1%) 4Ohm(RMS) 205W
2Ohm(RMS) 360W
1Ohm(RMS) 548W
FrequencyResponse(-3DB) 10-220Hz
High pass frequency OFF-50Hz
Low Pass Frequency(-3DB) 50-220Hz
Raise the frequency oflow pass 49Hz
Bass Boost 0-12DB
Signal To Noise Ratio >95DB
Input Sensitivity 0.2-6V
THD&Noise <0.03%
Fuse External fuse
Size(mm) 215x152x60mm
Weight(kg) 1.93KG

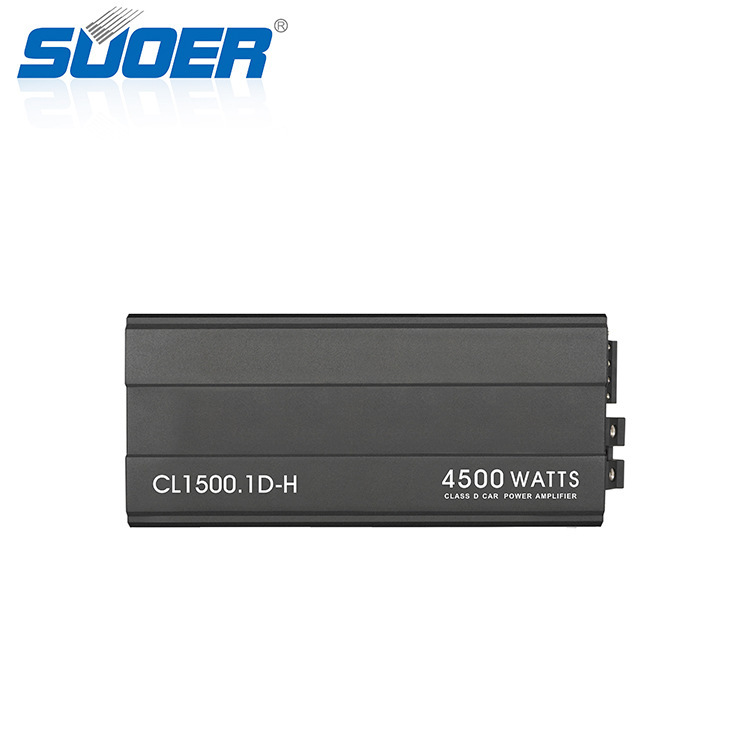

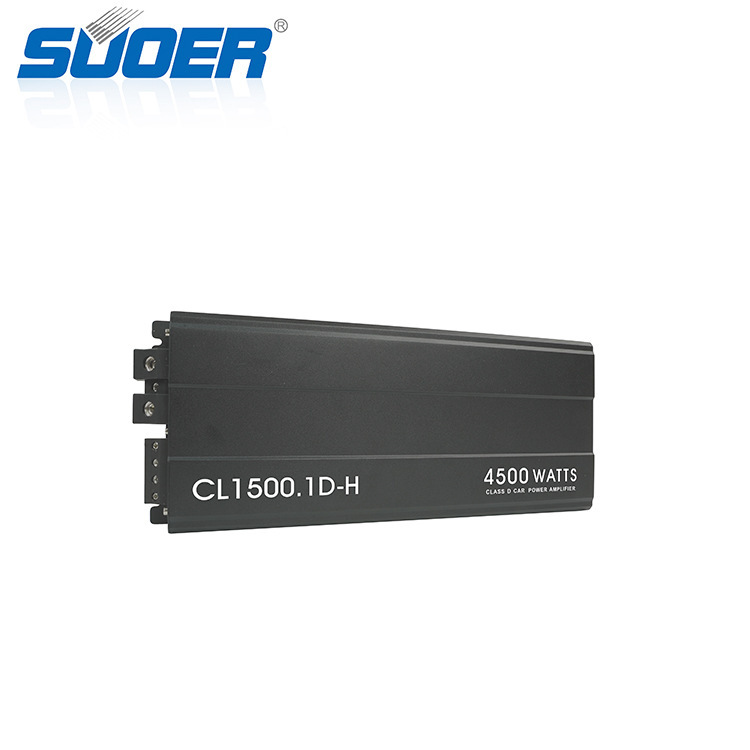

Model CL1500.1D-H
Product Type Class D Monoblock
Working Voltage DC12-16V
RMS Power(THD=1%) 4Ohm(RMS) 656W
2Ohm(RMS) 1106W
1Ohm(RMS) 1635W
FrequencyResponse(-3DB) 10-220Hz
High pass frequency OFF-50Hz
Low Pass Frequency(-3DB) 50-220Hz
Raise the frequency of low pass 49Hz
Bass Boost 0-12DB
Signal To Noise Ratio >95DB
Input Sensitivity 0.2-6V
THD&Noise <0.03%
Fuse External fuse
Size(mm) 380x152x60mm
Weight(kg) 3.79KG

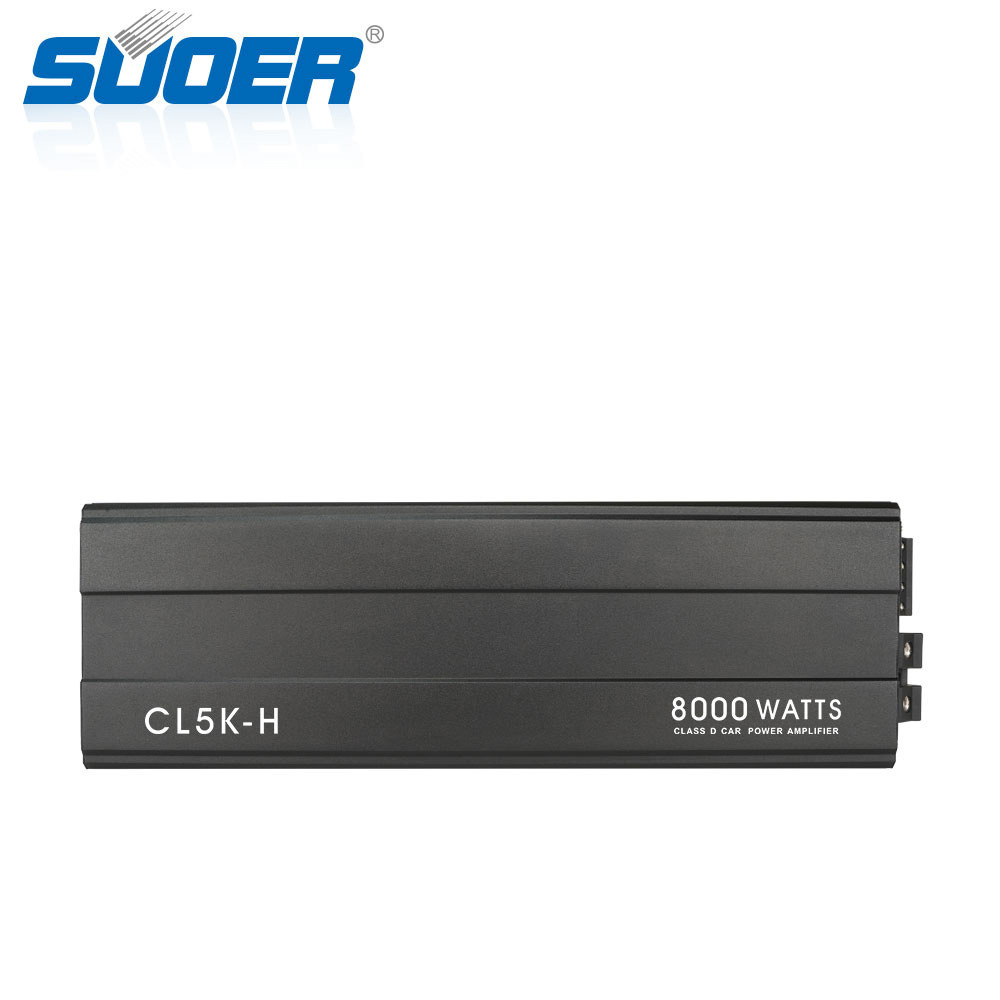

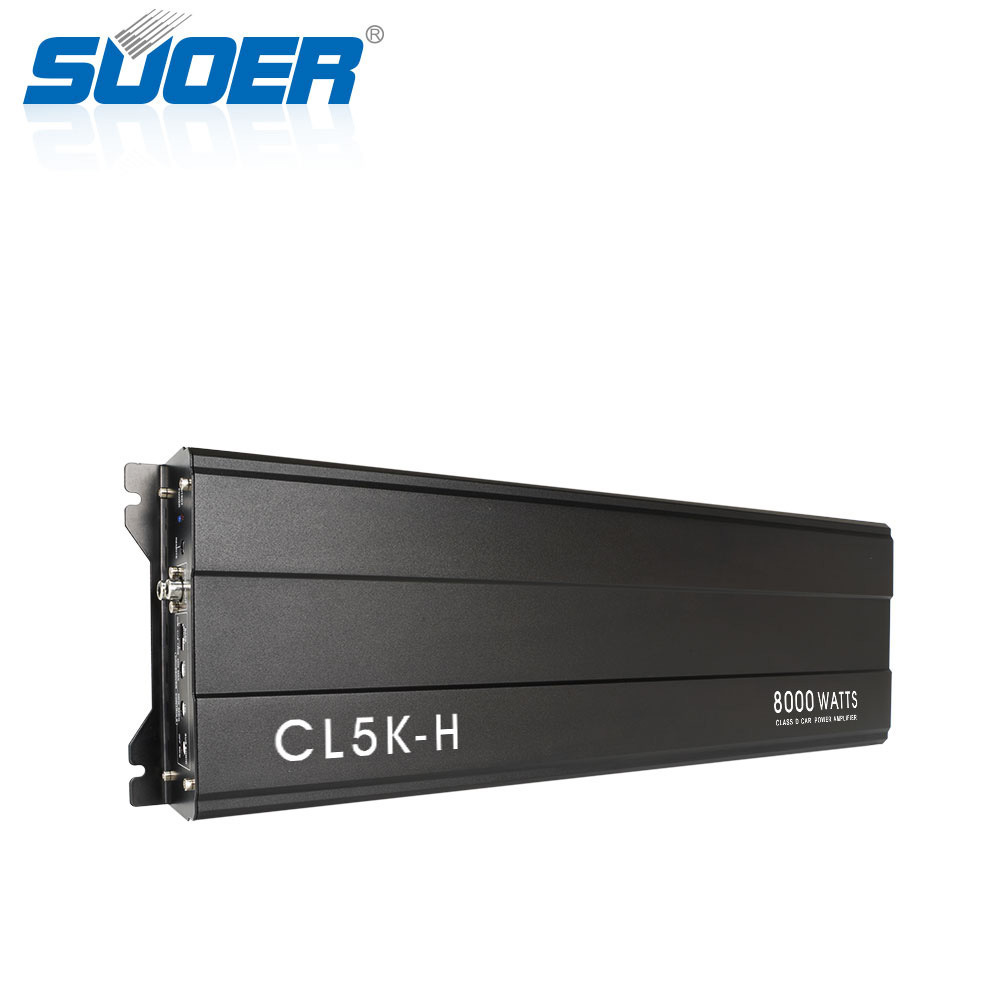

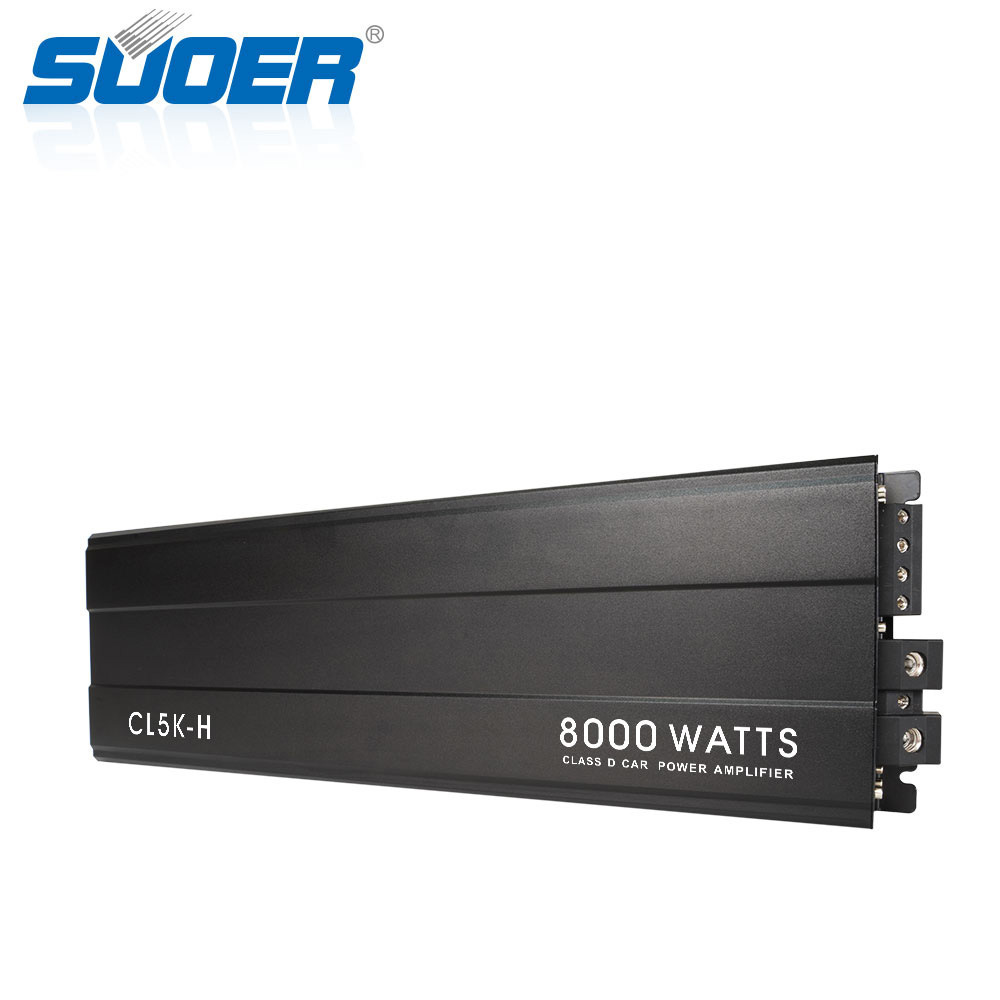

Model CL-5K
Output MONO channel class D
Input sentivity 0.2~5v
SNR(signalto noise Ratio) >96DB
(RMS)Power(THD=1% 1*956W/4Ω(THD=1%)1*1726w/2(THD=1%)1*2720w/1Ω(THD=1%)1*3350w/1Ω(THD=10%)
Frequency(-3DB) 10HZ~220HZ
Low-pass
Frequency(-3DB) 50HZ~2200HZ
High-pass
Frequency(-3DB) OFF-50HZ
Bass boost(-3DB) 0~12DB
Sub bass Frequency 45DB
THD(total harmonic distortion) <0.03%
Power supply 14.4V(9V~15V)NEGATIVE CONNECTIVE THE GROUND OF THE CAR
Size 455*152*60MM
Weight 6.65 KG
