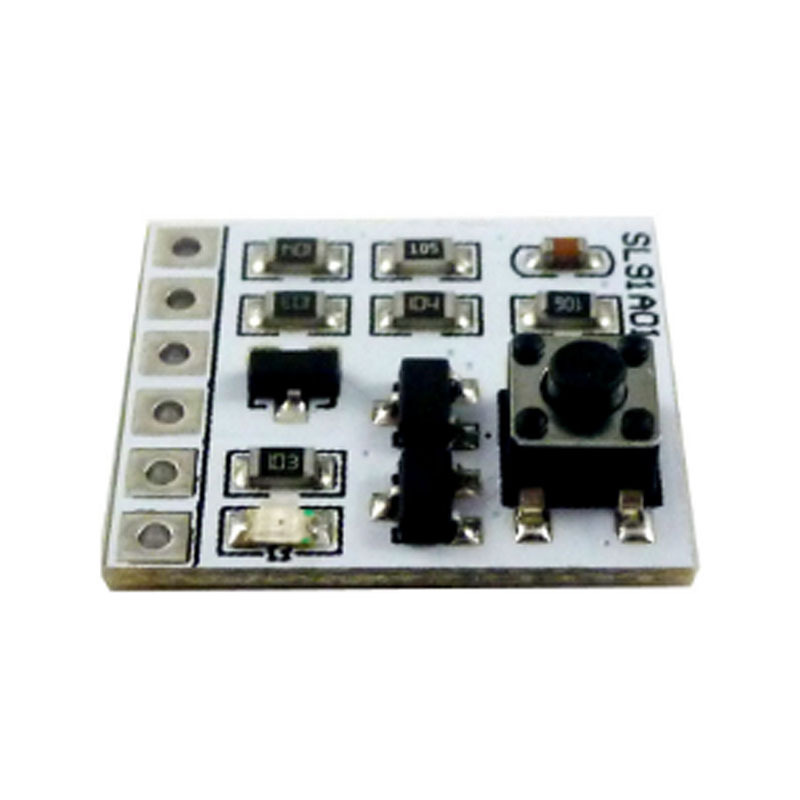

Product Name :    DC 2-18V 2A Self-locking electronic switch Bistable Board Button trigger Key for LED Relay Solenoid valve

Packing list:

 DC 2-18V 2A Self-locking electronic switch Bistable Board Button trigger Key for LED Relay Solenoid valve

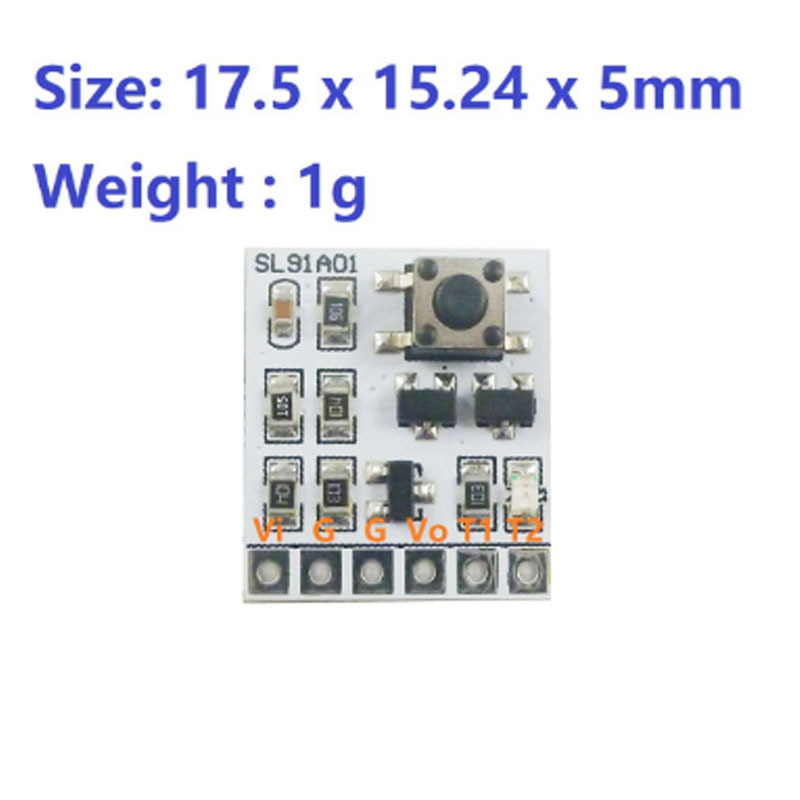

Description :    Working  voltage : DC 2-18V     Load current  :0-2A   Quiescent current: 11uA   Operating ambient temperature :  -40° to +85° Storage temperature :  -65° to +125°   Size: 17.5 x 15.24 x 5mm Weight : 1g

Module interface: ?     1. Vi : positive power supply (VCC) 2. G : negative power supply (GND) 3. G : negative Output (GND) 4 Vo : positive Output 5 Ti  : Button port 1 6 To : Button port 2

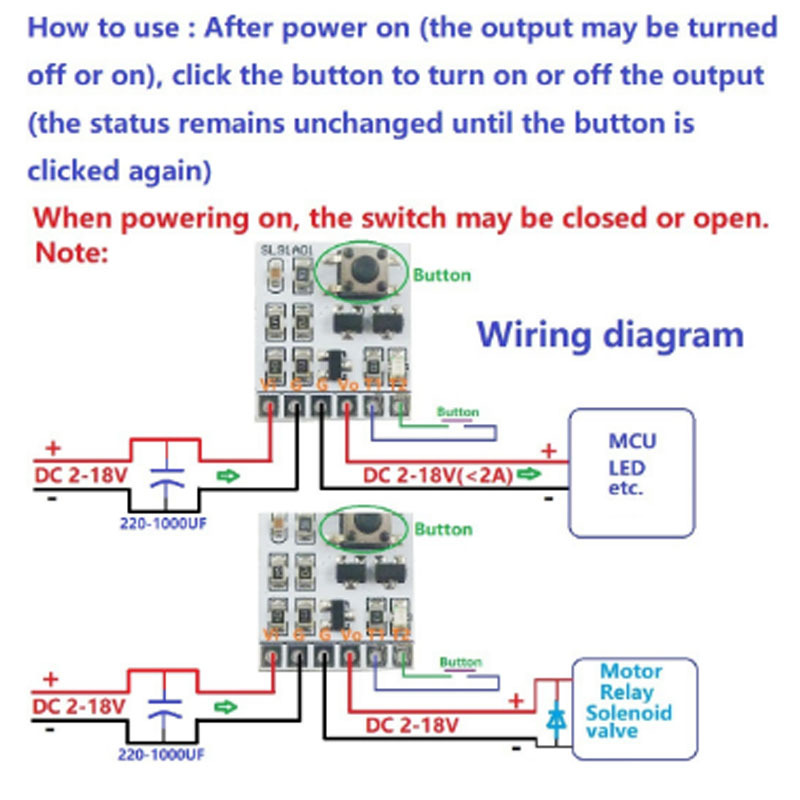

How to use: After power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again) Note:  1 When powering on, the output state may be on or off,Connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty

Typical applications:

Automotive electronics Industrial equipment Motor LED Smart Home Emergency lighting MCU development board Toy car Solenoid valve
