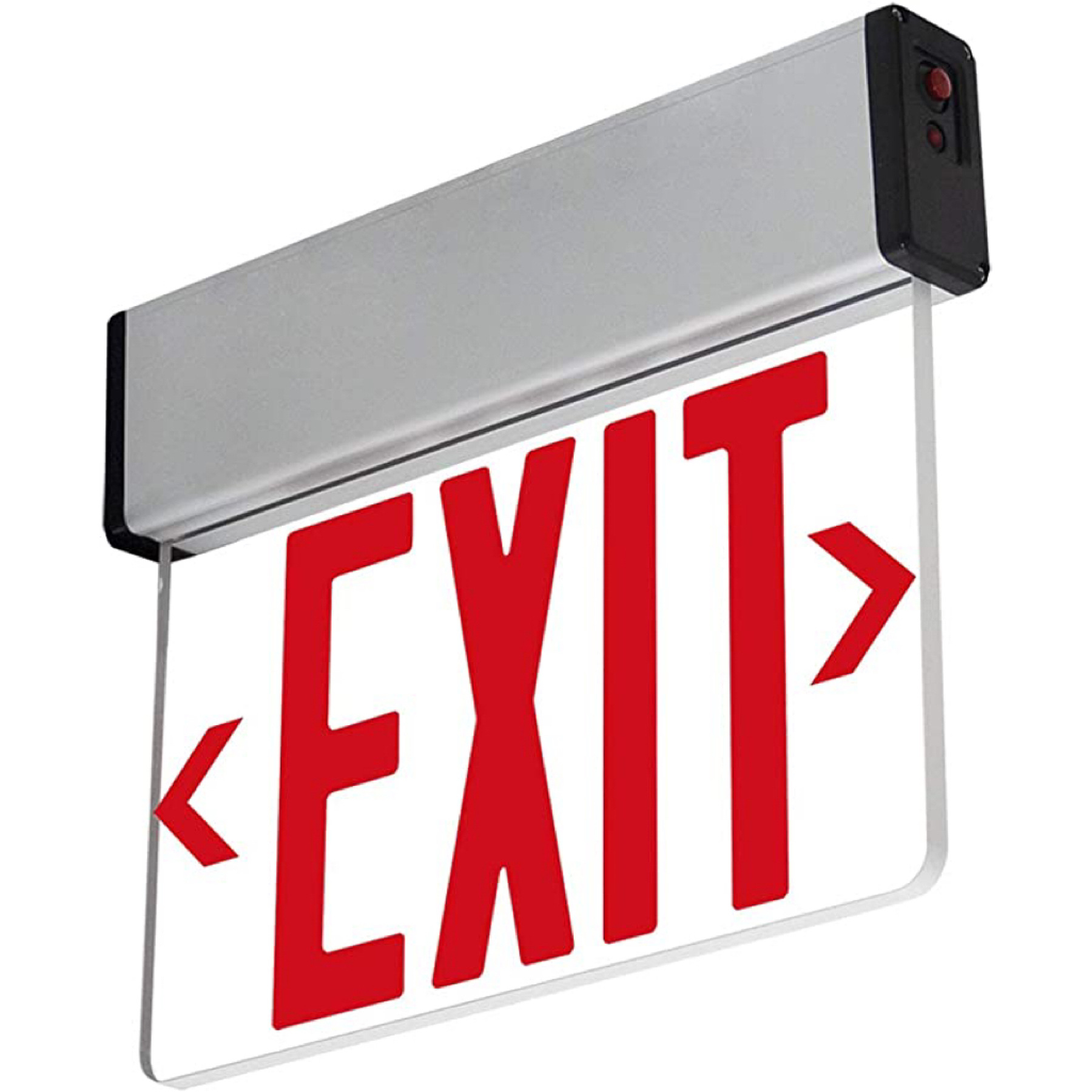

CR-7109 Edge Lit Exit Light
FEATURES & BENEFITS
•High grade acrylic diffuser
•Wall, ceiling and end mounting
•Suitable for Damp Locations
•UL 924 and CEC Title 20 Compliant
SPECIFICATIONS
Illumination: Legend: Long-life, high-intensity LEDs
Housing: Aluminum housing and high grade acrylic diffuser
UL-94-V0 flame-retardant, fire-resistant
Legend: Fully illuminated 6" characters
Input Voltage: 120-347VAC 60Hz
Input Rating: 1.2W 200mAh
Battery: Maintenance-free 4.8V NiCad battery
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Charging time: 24 hours
Discharge time: 120 minutes
Mounting: Wall, end and ceiling
Finish: Silver
Dimension: 305*245.9*40mm
Certifications: UL 924 Listed for Damp Locations
Meets NFPA 101 Life Safety Code, NEC, OSHA
California Energy Commission (CEC) Title 20 Compliant
