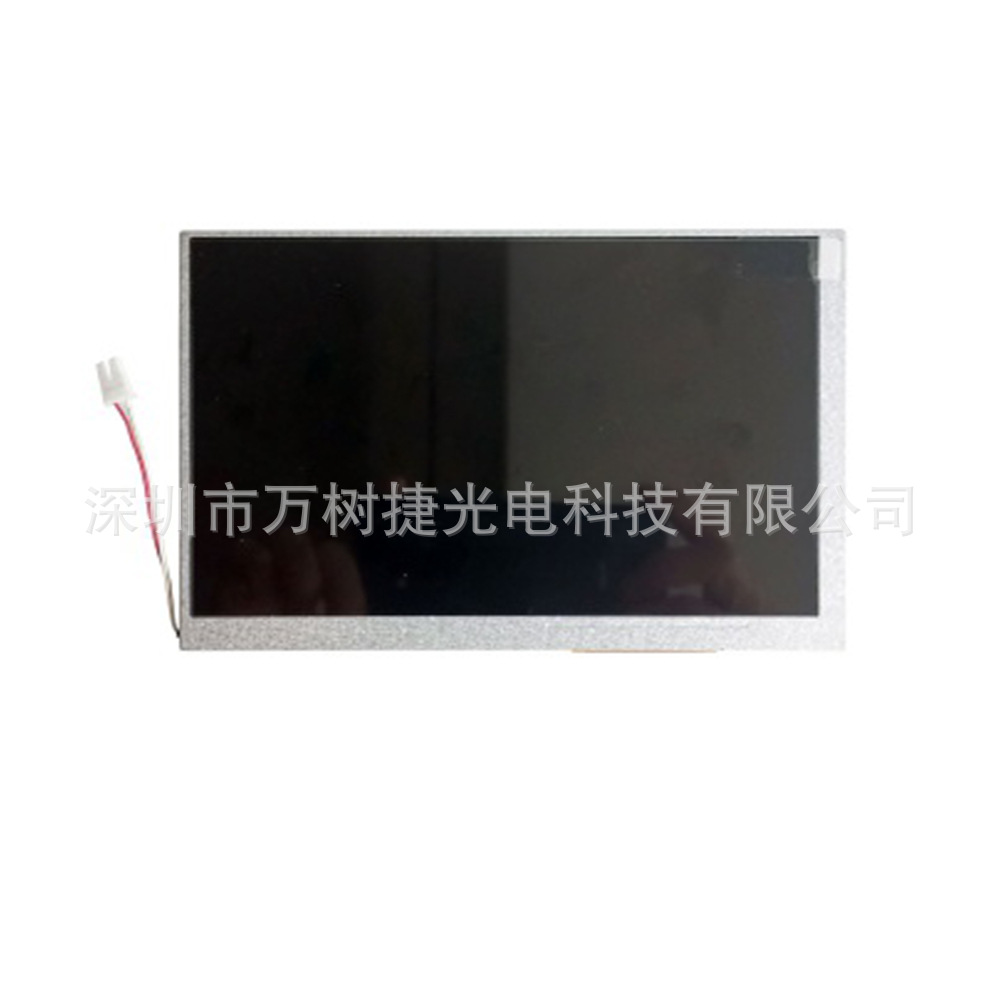

| LW700AT9309 | |||
| 7inch 800(RGB)×480, WVGA 133PPI , a-Si TFT-LCD, LCM | |||
| WLED Backlight，Matte DE mode | |||
| Panel Model | LW700AT9309 | Panel Brand | Chimei Innolux |
| Size (inch ) | 7inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI | Pixel Format | RGB Vertical Stripe |
| Module Outsize(mm) | 165(W)×104.44(H)×5.7(D) mm | Display Mode | TN, Normally White, Transmissive |
| LCD Active area(mm) | 152.4(W)×91.44(H) mm | Response Time | 5/11 (Typ.)(Tr/Td) ms |
| Support Color | 262K 45% NTSC | Light Source | 3S8P WLED , 20K hours , No Driver |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | TouchScreen | without |
| Brightness | 350 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) | Used for | Digital Photo Frame, Portable DVD Player |
| Frequncy | 60Hz | Enviroment | Storage Temp.: -30 ~ 80 °C |
| Operating Temp.: -20 ~ 70 °C | |||
| LCM Interface Type | TTL (1 ch, 6-bit) , 40 pins Connector | FPC connector | UJU, PF050-40ZSG-F09, Pitch 0.5mm |
| Packaging & Delivery | |||
| Packaging Details | 50pcs/Box | ||
| Port | ShenZhen / HongKong | ||
| Lead Time : | 1-3 working days after payment | ||
| Warranty | 12 Months | ||
| Please contact the seller before you release the order, thanks! | |||
