源头厂家，欢迎洽询！

规格参数：

1. 1. Function introduction:

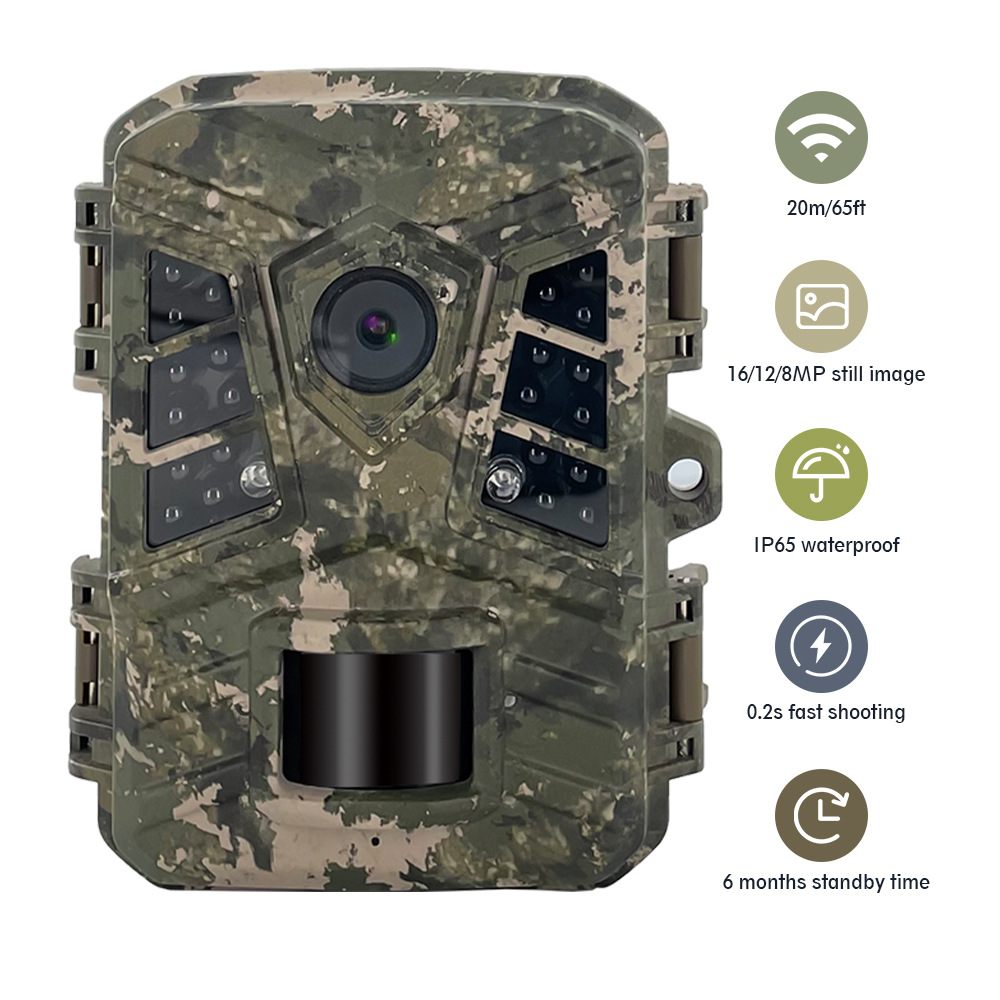

l Image Sensor Type： Brand new 1/3-Inch2-Megapixel CMOS Sensor

l Lens：  f=6.0mm  F/NO=F2.0MM  FOV=72°

l TFT Display Screen: 52x36mm (2.0");320(RGB)*240 DOT; 262K color

l Number of IR LED： 22PCS 850nm/940nm IR LEDs

l Image Resolution: 24MP/20MP/16MP/12MP

l Multiple Frame： 1-3 photos

l Date, time, temperature and moon phase information stamped on the images

l Video Resolution：1080P/30FPS. 720//30FPS

l IR Filter: Full Automatic IR Filter

l File Format : JPG/AVI(MJPG)

l Max Night Vision Lighting Distance： 48ft/15 meters

l TF Card： 1GB~256GB

l Trigger Speed： 0.2-0.6 second

l Working modes：Photo/ Video/ Photo + video

l Total PIR sensor angle：90

l PIR Sensing Distance： 75ft/25 meters

l PIR Interval：  2 seconds ~ 30mins (default 15 sec)

l Date Time, Temperature, Camera Name setting :Enable

l Pass Word Set：Digit set by yourself

l Camera Name Set： Digit set by yourself

l Timer Setting：Enabled

l Stand-by current： Less 0.2mA

l Stand-by time： About 6 months (LR6 AA  1.5V*4 battery)

l MIC support：Enabled

l Effective distance of Wifi hotspot : 10m/33ft

l Effective distance of Bluetooth wireless control： 10m/33ft

l Dedicate APP：Android/IOS

l External：1 USB; 1 TF Card Holder;1 DC 12V in

l Operation Temperature： -30°C - 70°C

l Operation humidity： 5% ~ 95%

l Power Supply： 4AA Battery /DC 12V-1A

l Water proof： IP65

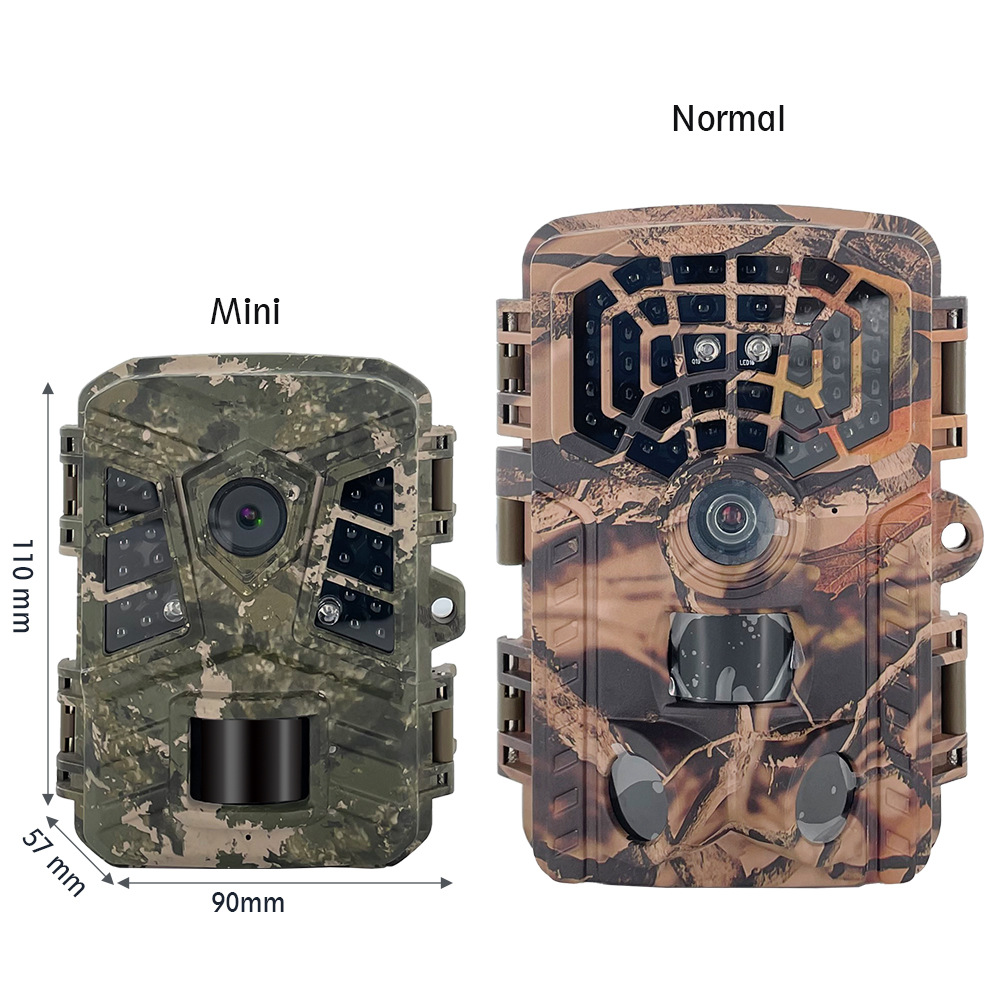

l Bare machine dimensions:  110（L）×90（W）×56.5（H）mm

1. 2. Package info：

l Package size: 155（L）×100（W）×67（H）mm

l N.W.:172g    G.W.:290g

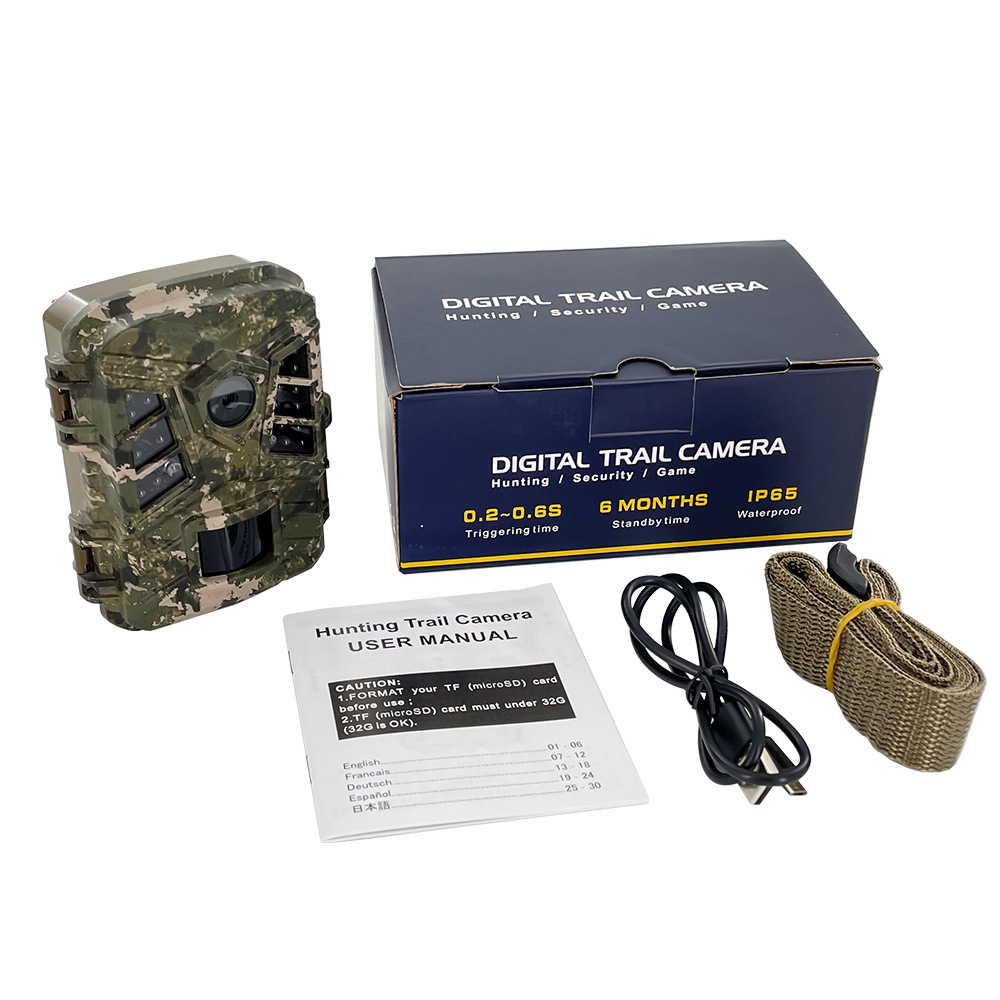

l Accessory: 1 User Manual/1 USB cable/1 Bandage

l Carton size: 430（L）×340（W）×315（H）mm

l 32pcs/CTN ：N.W.:10Kg    G.W.:11KG
