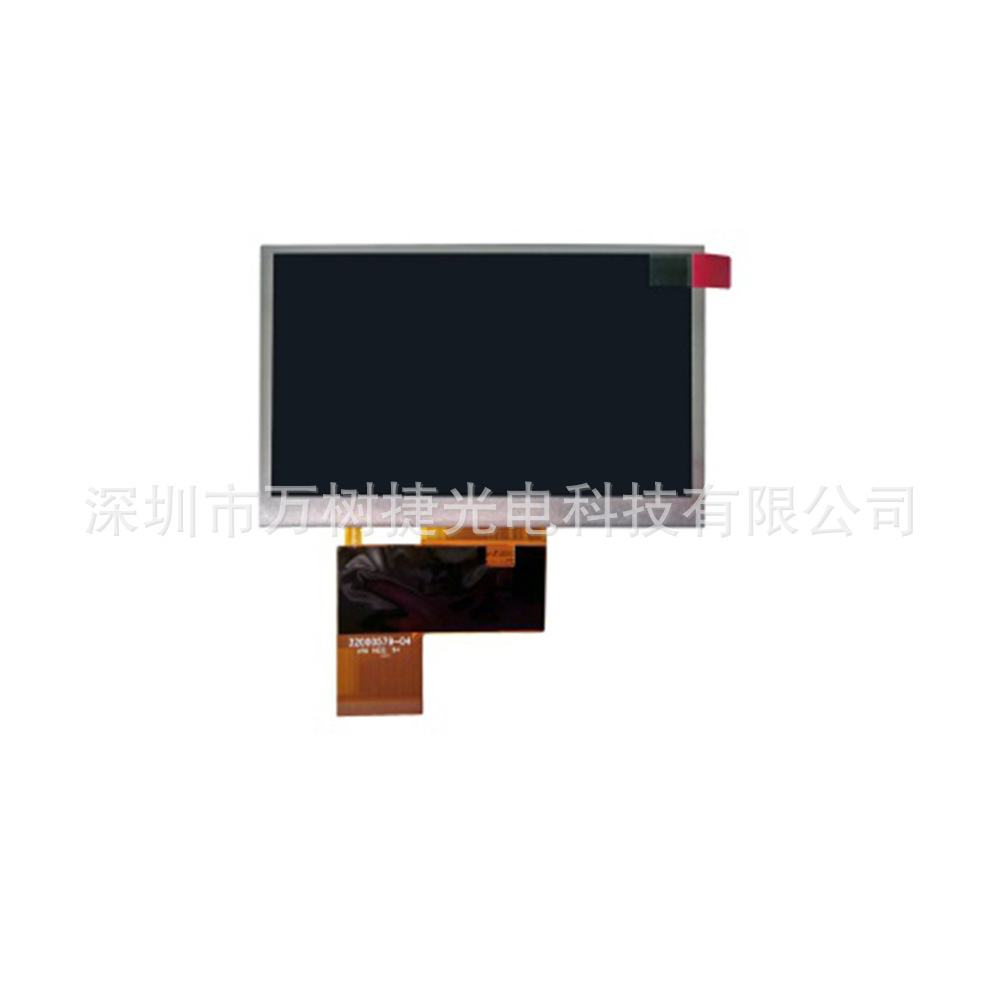

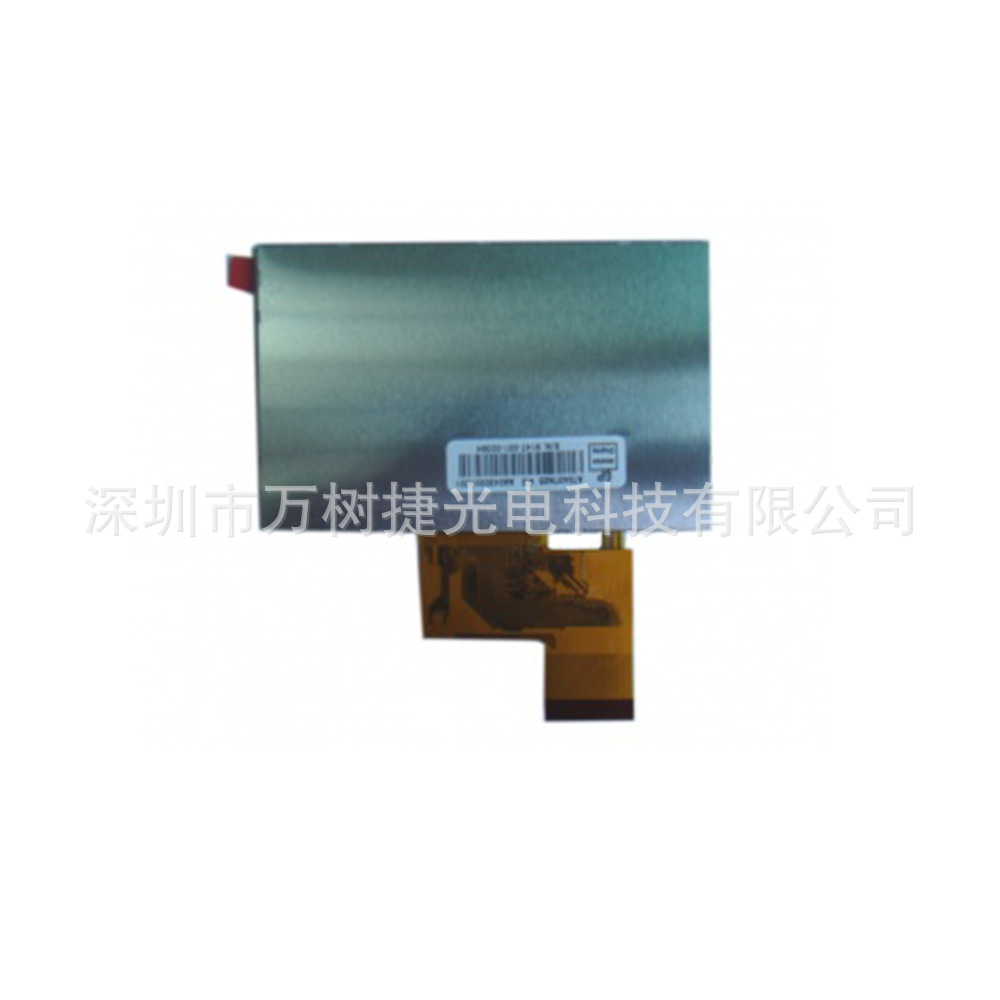

| AT043TN25 V.2 4.3inch 480(RGB)×272, WQVGA 128PPI , a-Si TFT-LCD, LCM |
|||
| WLED Backlight，Matte 2 in 1 FPC | |||
| Panel Model | AT043TN25 V.2 | Panel Brand | Innolux |
| Size (inch ) | 4.3inch | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×272, WQVGA 128PPI | Pixel Format | RGB Vertical Stripe |
| Module Outsize(mm) | 105.5(W)×67.2(H) ×3.1(D) mm | Display Mode | TN, Normally White, Transmissive |
| LCD Active area(mm) | 95.04(W)×53.856(H) mm | Response Time | 10/15 (Typ.)(Tr/Td) |
| Support Color | 16.7M 50% NTSC | Light Source | 8S1P WLED , 20K hours , Without Driver |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | TouchScreen | Without |
| Brightness | 500 (Typ.)(cd/m²) | Power Supply | 3.3.0V (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) | Used for | Automotive Display, Portable nevigation |
| Frequncy | 60Hz | Enviroment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| LCM Interface Type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC | FPC connector | Pitch 0.5mm |
| Packaging & Delivery | |||
| Packaging Details | 80pcs/Box | ||
| Port | ShenZhen / HongKong | ||
| Lead Time : | 1-3 working days after payment | ||
| Warranty | 12 Months | ||
|
Please contact the seller before you release the order, thanks!
|
|||
