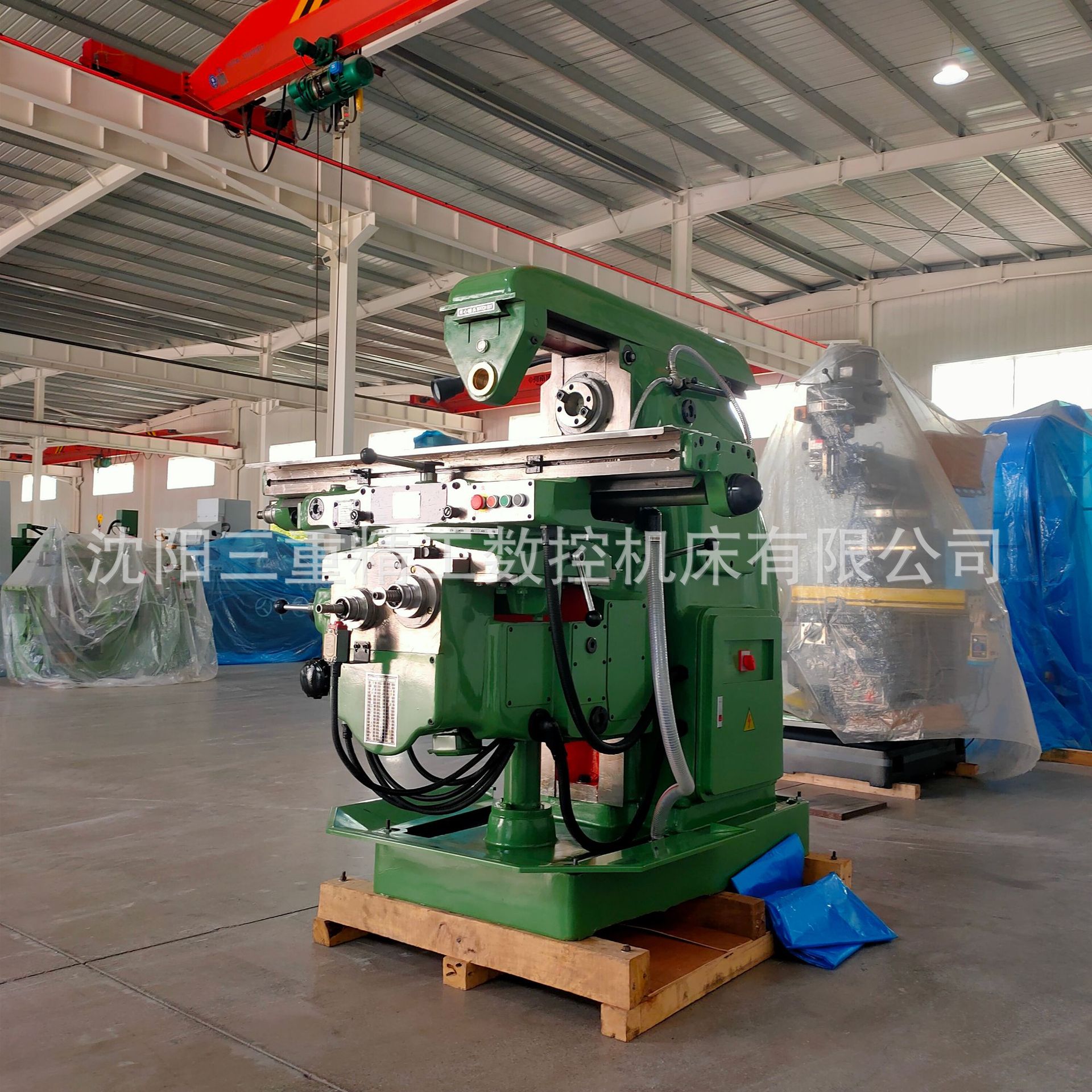

型号model

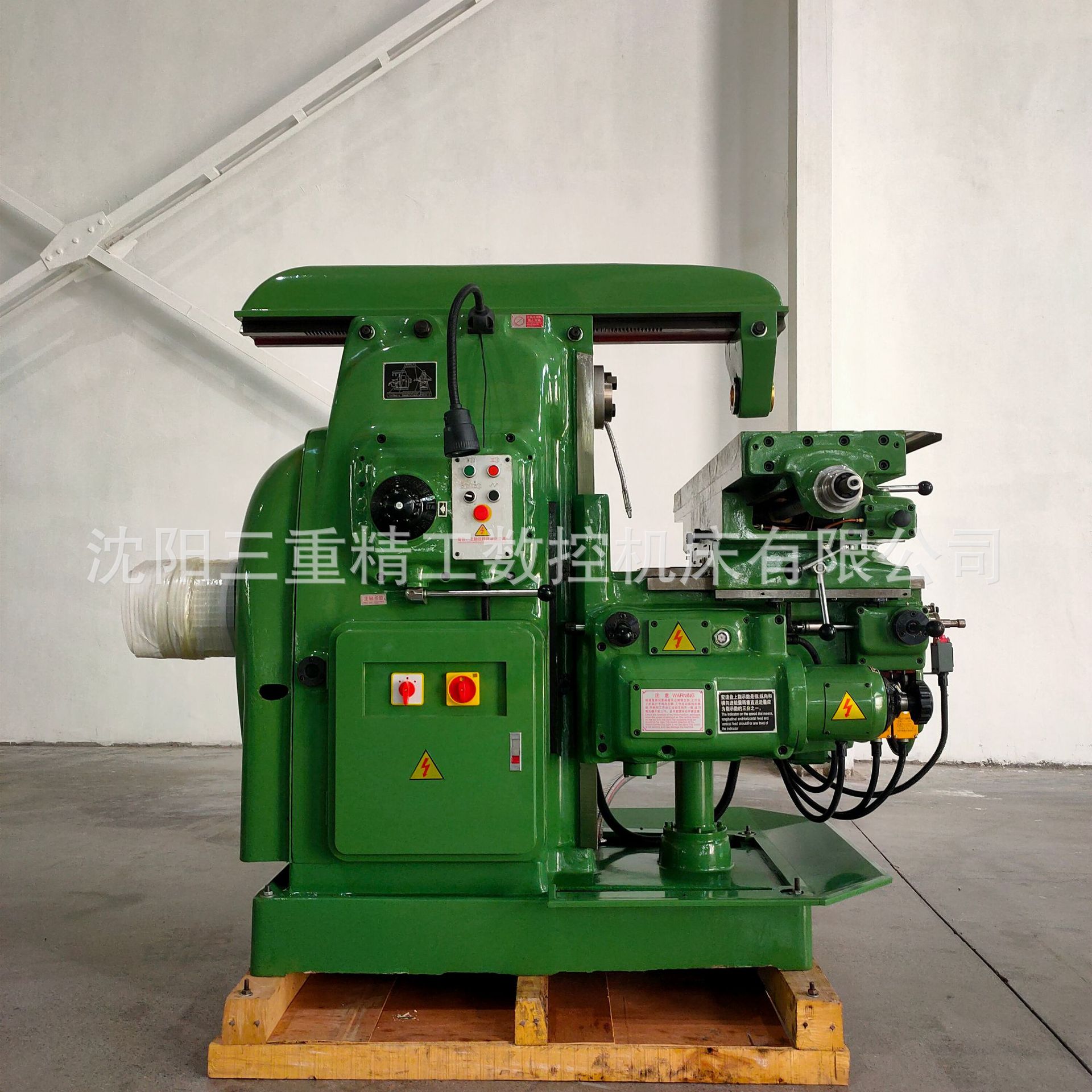

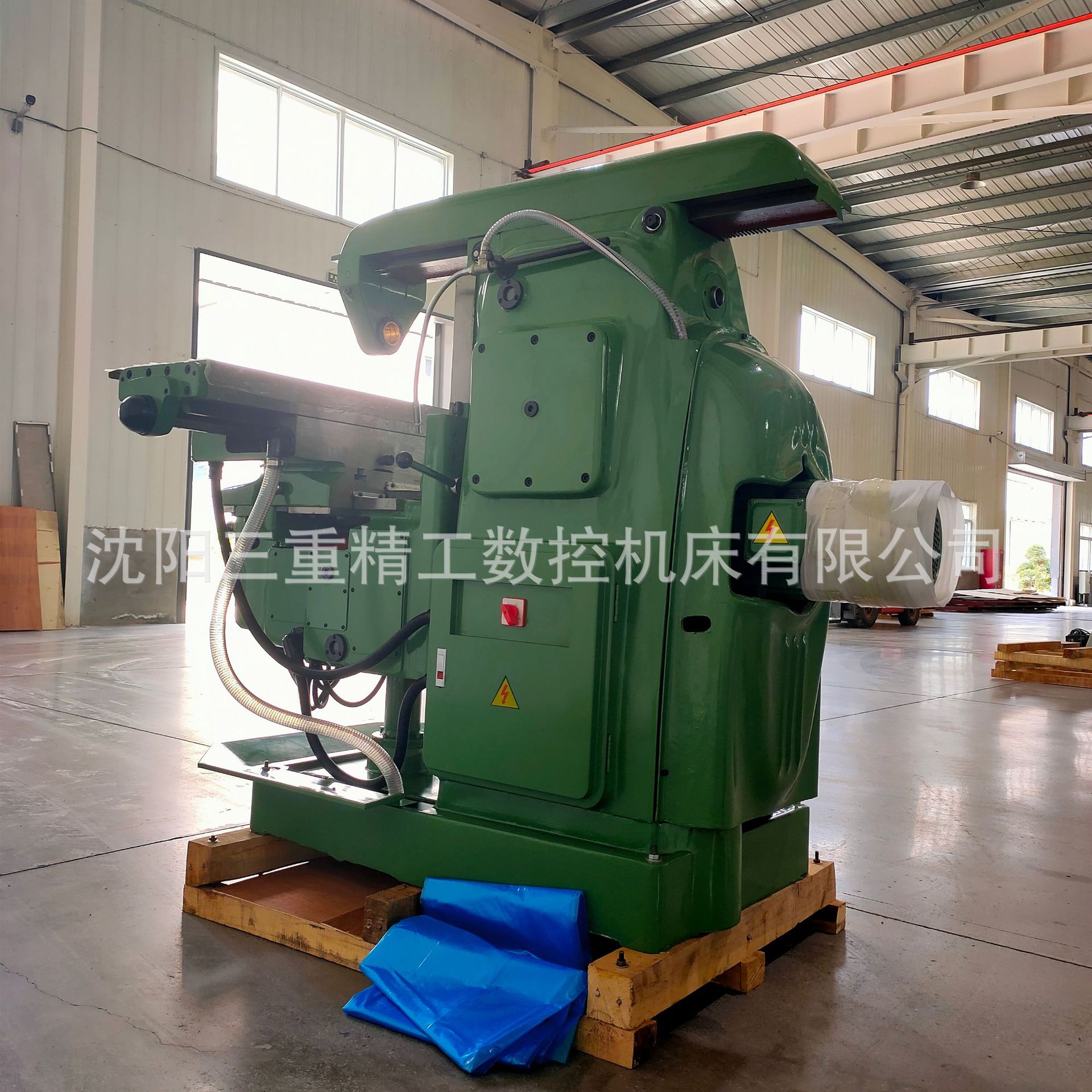

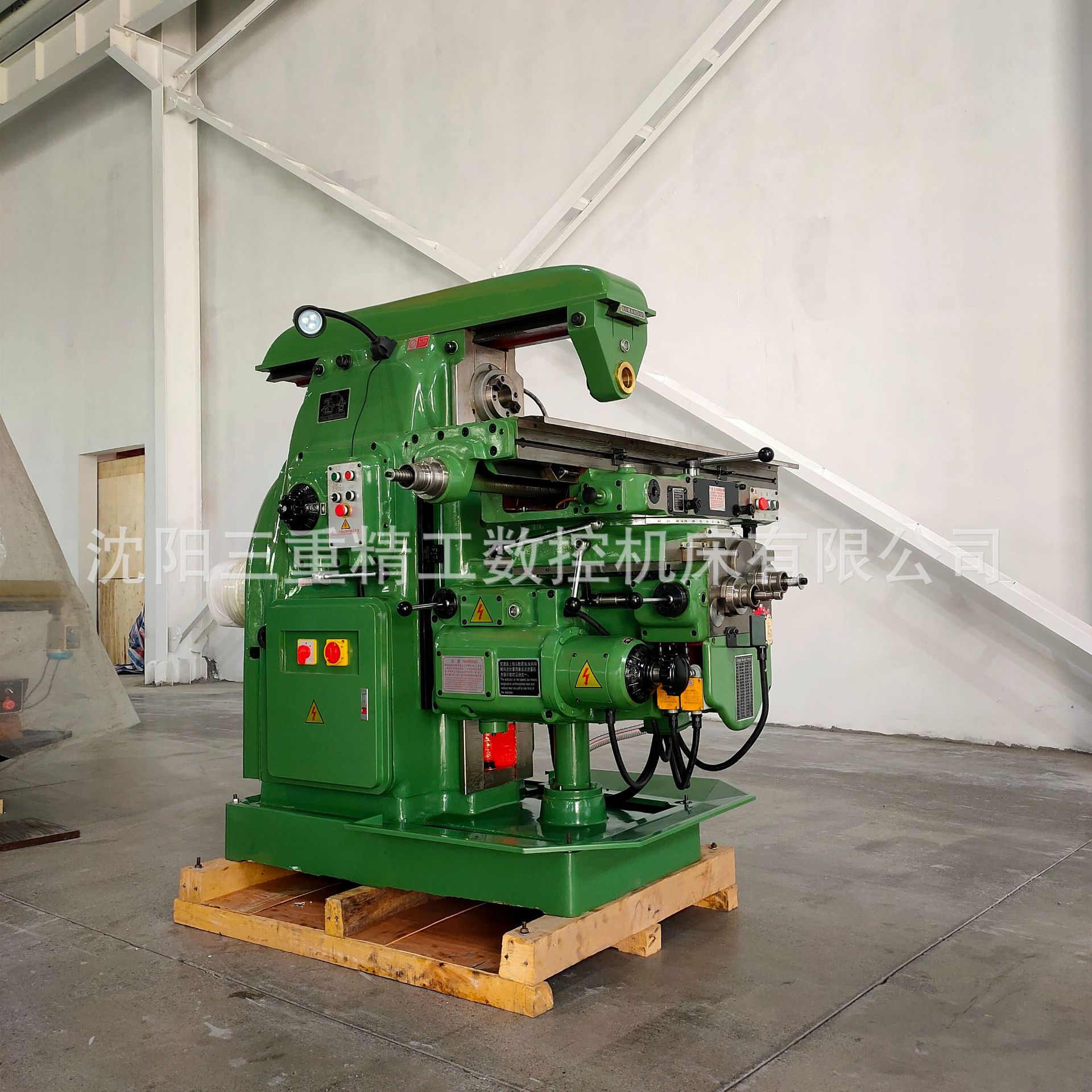

X6132

工作台面积mm  Workbench area mm

320X1325

工作台最大纵向行程手动/机动mm Maximum longitudinal stroke of workbench manual/motorized mm

700/680

工作台最大横向行程手动/机动mm Maximum lateral travel of workbench manual/motorized mm

255/240

工作台最大垂直行程手动/机动mm Maximum vertical stroke of workbench manual/motorized mm

320/300

工作台最大回转角度

Maximum rotation angle of the workbench

±45度± 45 degrees

主轴中心线至工作台面距离mm

Distance from spindle centerline to worktable mm

30/350

主轴转速级数Spindle speed level

18级Level 18

主轴转速范围r.p.m Spindle speed range, r. p.m

30~1500

工作台进给量级数

Number of feed stages on the workbench

18级Level 18

主传动电机功率KW Main transmission motor power KW

7.5

进给电机功率KW Feed motor power KW

1.5

机床外形尺寸(长X宽X高)mm

Machine tool dimensions (length x width x height) mm

2294*1770*1610

机床净重/毛重Kg

 Net weight/gross weight of machine tool Kg

2650/2950
